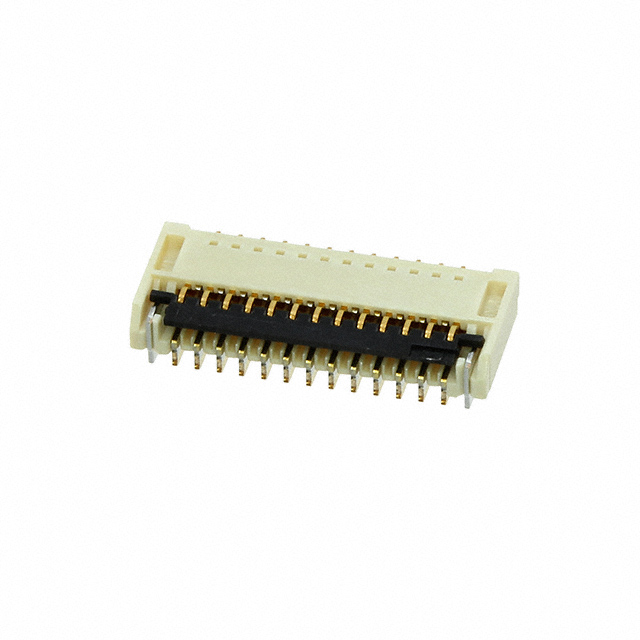

501912-2590
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 501912-2590 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 501912-2590 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 501912-2590 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | CONN FPC BOTTOM 25POS 0.30MM R/A |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | ||
|---|---|---|---|---|---|
| $0.581 | $0.528 | $0.496 | |||
| 50 pcs | 100 pcs | 250 pcs | |||
| $0.474 | $0.453 | $0.41 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 501912-2590 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | CONN FPC BOTTOM 25POS 0.30MM R/A | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 81552 pcs | Data sheet | 501912-2590 |
| Category | Connectors, Interconnects | Voltage Rating | 50V |
| Termination | Solder | Series | Easy-On 501912 |
| Pitch | 0.012" (0.30mm) | Packaging | Original-Reel® |
| Other Names | WM2212DKR | Operating Temperature | -20°C ~ 85°C |
| Number of Positions | 25 | Mounting Type | Surface Mount, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Cycles | 20 |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 19 Weeks |
| Locking Feature | Flip Lock | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Housing Material | Polymer, Glass Filled | Housing Color | - |
| Height Above Board | - | Flat Flex Type | FPC |
| Features | Solder Retention | FFC, FCB Thickness | 0.20mm |
| Detailed Description | 25 Position FPC Connector Contacts, Bottom 0.012" (0.30mm) Surface Mount, Right Angle | Current Rating | 0.2A |
| Contact Material | Copper Alloy | Contact Finish Thickness | - |
| Contact Finish | Gold | Connector/Contact Type | Contacts, Bottom |
| Cable End Type | Tapered | Actuator Material | Polymer, Glass Filled |
| Actuator Color | - |
