5018762040

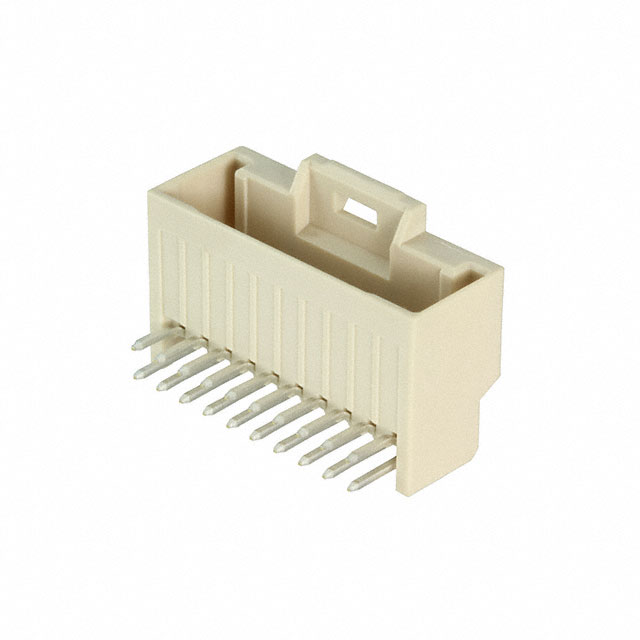

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 5018762040 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 5018762040 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 5018762040 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | CONN 2.0 W/B DL R/A PLUG 20CKT |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 375 pcs | 750 pcs | |
|---|---|---|---|---|---|
| $0.472 | $0.416 | $0.326 | $0.285 | ||
| 1125 pcs | 5250 pcs | 10125 pcs | |||
| $0.261 | $0.228 | $0.217 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 5018762040 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | CONN 2.0 W/B DL R/A PLUG 20CKT | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 87237 pcs | Data sheet | 5018762040 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | iGrid 501876 |
| Row Spacing - Mating | 0.079" (2.00mm) | Pitch - Mating | 0.079" (2.00mm) |
| Packaging | Tray | Overall Contact Length | - |
| Other Names | 501876-2040 5018762040-ND WM12315 |
Operating Temperature | - |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 20 | Mounting Type | Through Hole, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 13 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyamide (PA66), Nylon 6/6, Glass Filled |
| Insulation Height | 0.327" (8.30mm) | Insulation Color | Natural |
| Ingress Protection | - | Features | - |
| Fastening Type | Latch Holder | Detailed Description | Connector Header Through Hole, Right Angle 20 position 0.079" (2.00mm) |
| Current Rating | - | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Brass |
| Contact Length - Post | 0.126" (3.20mm) | Contact Length - Mating | - |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
| Connector Type | Header | Applications | Automotive, General Purpose, Industrial, Medical, Telecommunications |
