5018648090

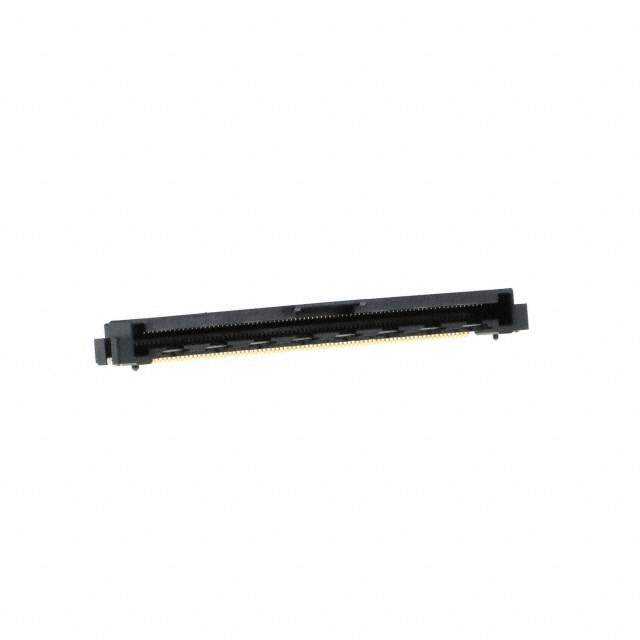

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 5018648090 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 5018648090 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 5018648090 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | CONN FFC BOTTOM 80POS 0.50MM R/A |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | ||
|---|---|---|---|---|---|
| $3.008 | $2.877 | $2.615 | |||
| 50 pcs | 100 pcs | 250 pcs | |||
| $2.484 | $2.419 | $2.158 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 5018648090 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | CONN FFC BOTTOM 80POS 0.50MM R/A | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 16763 pcs | Data sheet | 501864-xx(11,90), 50178(3,4)-xx09 Spec5018648090 |
| Category | Connectors, Interconnects | Voltage Rating | 50V |
| Termination | Solder | Series | Easy-On 501864 |
| Pitch | 0.020" (0.50mm) | Packaging | Original-Reel® |
| Other Names | WM20782DKR | Operating Temperature | -40°C ~ 85°C |
| Number of Positions | 80 | Mounting Type | Surface Mount, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Cycles | 20 |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 12 Weeks |
| Locking Feature | Slide Lock | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Housing Material | Liquid Crystal Polymer (LCP), Glass Filled | Housing Color | Black |
| Height Above Board | 0.191" (4.85mm) | Flat Flex Type | FFC |
| Features | Board Guide, Solder Retention | FFC, FCB Thickness | 0.30mm |
| Detailed Description | 80 Position FFC Connector Contacts, Bottom 0.020" (0.50mm) Surface Mount, Right Angle | Current Rating | 0.5A |
| Contact Material | Copper Alloy | Contact Finish Thickness | - |
| Contact Finish | Gold | Connector/Contact Type | Contacts, Bottom |
| Cable End Type | Notched | Actuator Material | - |
| Actuator Color | - |
