500797-2594

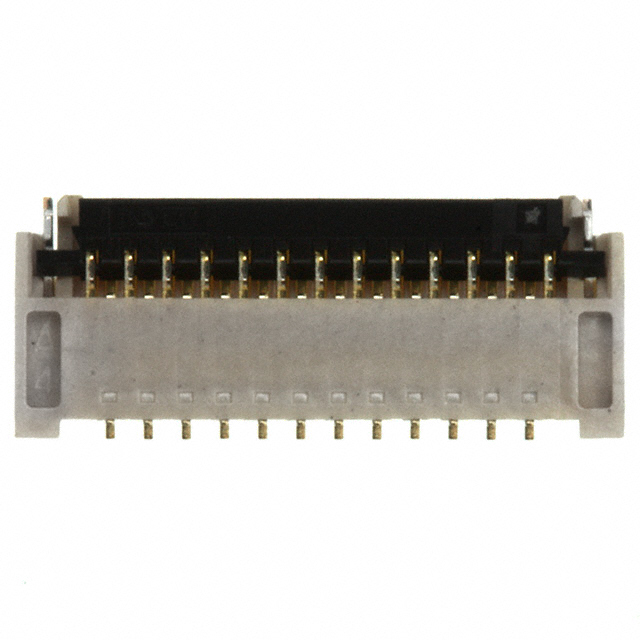

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 500797-2594 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 500797-2594 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 500797-2594 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | CONN FPC BOTTOM 25POS 0.30MM R/A |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 500797-2594 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | CONN FPC BOTTOM 25POS 0.30MM R/A | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5751 pcs | Data sheet | 500797-2594 |
| Category | Connectors, Interconnects | Voltage Rating | 50V |
| Termination | Solder | Series | Easy-On 500797 |
| Pitch | 0.012" (0.30mm) | Packaging | Bulk |
| Other Names | 0500797-2594 0500797-2594-C 05007972594 05007972594-C 500797-2550 500797-2594-C 500797-2594-ND 5007972594 5007972594-C WM2193 |
Operating Temperature | -20°C ~ 85°C |
| Number of Positions | 25 | Mounting Type | Surface Mount, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Cycles | 20 |
| Material Flammability Rating | UL94 V-0 | Locking Feature | Flip Lock |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Housing Material | Liquid Crystal Polymer (LCP), Glass Filled |
| Housing Color | - | Height Above Board | 0.041" (1.05mm) |
| Flat Flex Type | FPC | Features | Solder Retention, Zero Insertion Force (ZIF) |
| FFC, FCB Thickness | 0.20mm | Detailed Description | 25 Position FPC Connector Contacts, Bottom 0.012" (0.30mm) Surface Mount, Right Angle |
| Current Rating | 0.2A | Contact Material | Copper Alloy |
| Contact Finish Thickness | - | Contact Finish | Gold |
| Connector/Contact Type | Contacts, Bottom | Cable End Type | Tapered |
| Actuator Material | Polyamide (PA46), Nylon 4/6 | Actuator Color | - |
