5007620481

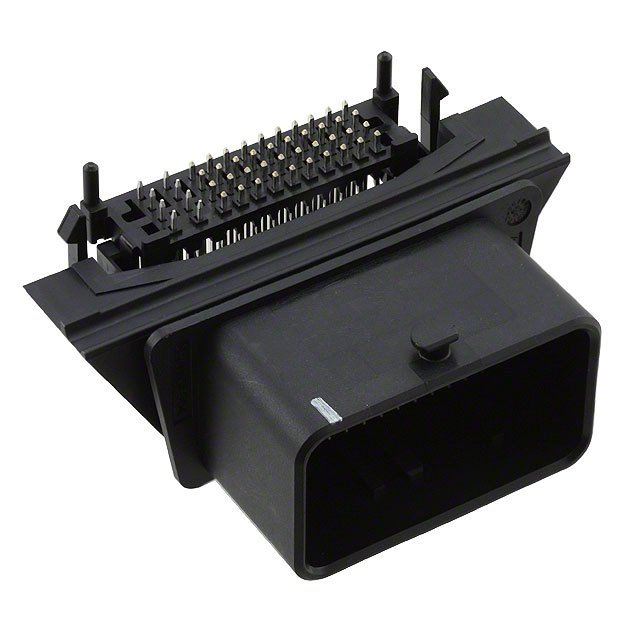

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 5007620481 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 5007620481 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 5007620481 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | CMC HEADER ASSY 48CKT |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 80 pcs | 160 pcs | 560 pcs | 1040 pcs |
|---|---|---|---|---|---|
| $3.058 | $2.527 | $2.46 | $2.061 | $1.822 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | 5007620481 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | CMC HEADER ASSY 48CKT | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 17684 pcs | Data sheet | 500762-048x Drawing |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | CMC 500762 |
| Row Spacing - Mating | - | Pitch - Mating | - |
| Packaging | Tray | Overall Contact Length | - |
| Other Names | 500762-0481 WM4430 |
Operating Temperature | - |
| Number of Rows | 4 | Number of Positions Loaded | All |
| Number of Positions | 48 | Mounting Type | Board Edge, Through Hole, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | - |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 13 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Insulation Height | 1.063" (27.00mm) | Insulation Color | Black |
| Ingress Protection | - | Features | Board Guide, Board Lock, Mounting Flange |
| Fastening Type | Latch Lock | Detailed Description | Connector Header Board Edge, Through Hole, Right Angle 48 position |
| Current Rating | - | Contact Type | Male Pin |
| Contact Shape | - | Contact Material | Copper Alloy |
| Contact Length - Post | - | Contact Length - Mating | - |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
| Connector Type | Header | Applications | Automotive |
