44812-0026

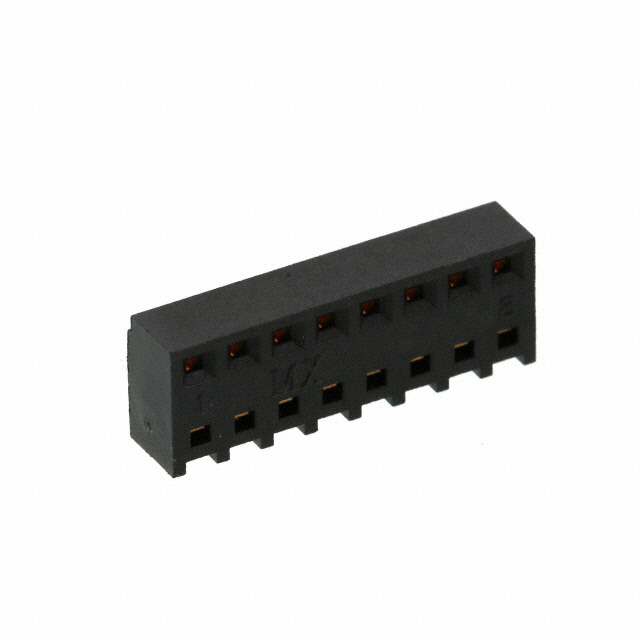

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 44812-0026 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 44812-0026 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 44812-0026 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | CONN RECPT 8POS .100" 15GOLD PCB |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | ||
|---|---|---|---|---|---|
| $1.161 | $1.113 | $0.927 | |||
| 500 pcs | 1000 pcs | 5000 pcs | |||
| $0.788 | $0.672 | $0.603 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 44812-0026 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | CONN RECPT 8POS .100" 15GOLD PCB | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 54357 pcs | Data sheet | 44812-0026 |
| Category | Connectors, Interconnects | Voltage Rating | 250VAC, 176VDC |
| Termination | Solder | Style | Board to Board |
| Series | KK 44812 | Row Spacing - Mating | - |
| Pitch - Mating | 0.100" (2.54mm) | Packaging | Tray |
| Other Names | 044812-0026 044812-0026-E 0448120026 0448120026-E 44812-0026-E 44812-0026-TR140 448120026 448120026-E WM18607 |
Operating Temperature | -40°C ~ 105°C |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 8 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 13 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyamide (PA), Nylon, Glass Filled |
| Insulation Height | 0.177" (4.50mm) | Insulation Color | Black |
| Ingress Protection | - | Features | - |
| Fastening Type | Push-Pull | Detailed Description | 8 Position Receptacle, Bottom or Top Entry Connector 0.100" (2.54mm) Through Hole Gold |
| Current Rating | - | Contact Type | Female Socket |
| Contact Shape | Square | Contact Material | Brass Alloy |
| Contact Length - Post | 0.136" (3.46mm) | Contact Finish Thickness - Post | 100.0µin (2.54µm) |
| Contact Finish Thickness - Mating | 15.0µin (0.38µm) | Contact Finish - Post | Tin |
| Contact Finish - Mating | Gold | Connector Type | Receptacle, Bottom or Top Entry |
| Applications | Automotive, General Purpose, Medical, Telecommunications |
