44812-0005

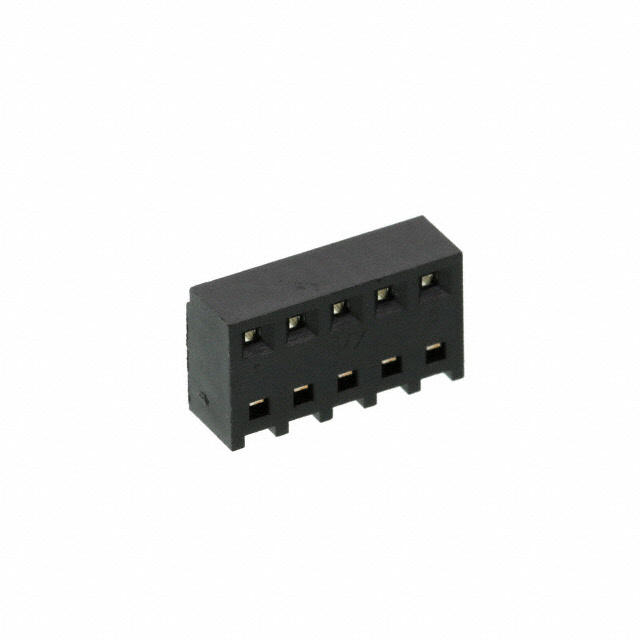

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 44812-0005 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 44812-0005 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 44812-0005 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | CONN RECEPT 5POS .100" TIN PCB |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | ||
|---|---|---|---|---|---|
| $0.796 | $0.721 | $0.618 | |||
| 500 pcs | 1000 pcs | 5000 pcs | |||
| $0.515 | $0.441 | $0.391 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 44812-0005 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | CONN RECEPT 5POS .100" TIN PCB | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 96981 pcs | Data sheet | 44812-0005 |
| Category | Connectors, Interconnects | Voltage Rating | 250VAC, 176VDC |
| Termination | Solder | Style | Board to Board |
| Series | KK 44812 | Row Spacing - Mating | - |
| Pitch - Mating | 0.100" (2.54mm) | Packaging | Tray |
| Other Names | 044812-0005 044812-0005-E 0448120005 0448120005-E 44812-0005-E 44812-0005-TR230 448120005 448120005-E WM18593 |
Operating Temperature | -40°C ~ 105°C |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 5 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 13 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyamide (PA), Nylon, Glass Filled |
| Insulation Height | 0.177" (4.50mm) | Insulation Color | Black |
| Ingress Protection | - | Features | - |
| Fastening Type | Push-Pull | Detailed Description | 5 Position Receptacle, Bottom or Top Entry Connector 0.100" (2.54mm) Through Hole Tin |
| Current Rating | - | Contact Type | Female Socket |
| Contact Shape | Square | Contact Material | Brass Alloy |
| Contact Length - Post | 0.136" (3.46mm) | Contact Finish Thickness - Post | 200.0µin (5.08µm) |
| Contact Finish Thickness - Mating | 200.0µin (5.08µm) | Contact Finish - Post | Tin |
| Contact Finish - Mating | Tin | Connector Type | Receptacle, Bottom or Top Entry |
| Applications | Automotive, General Purpose, Medical, Telecommunications |
