2010212024

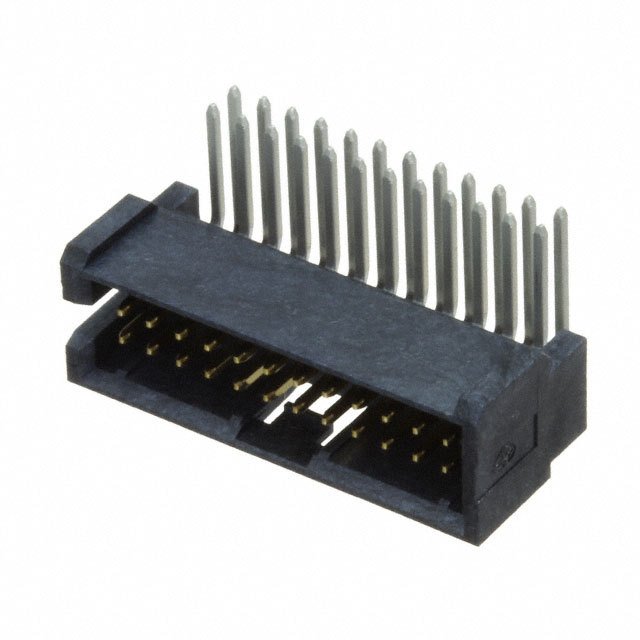

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 2010212024 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 2010212024 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 2010212024 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | SLIM-GRID HEADER, 24 CIRCUITS, T |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 29 pcs | 116 pcs | ||
|---|---|---|---|---|---|
| $0.971 | $0.855 | $0.777 | |||
| 522 pcs | 1015 pcs | 5017 pcs | |||
| $0.661 | $0.563 | $0.505 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 2010212024 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | SLIM-GRID HEADER, 24 CIRCUITS, T | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 67798 pcs | Data sheet | Slim-Grid Datasheet2009890001 Prod Spec2010212024 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 125V |
| Termination | Solder | Style | Board to Board |
| Shrouding | Shrouded - 4 Wall | Series | Slim-Grid 201021 |
| Row Spacing - Mating | 0.050" (1.27mm) | Pitch - Mating | 0.050" (1.27mm) |
| Packaging | Tube | Overall Contact Length | - |
| Other Names | 201021-2024 2010212024-ND WM16698 |
Operating Temperature | -55°C ~ 105°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 24 | Mounting Type | Through Hole, Right Angle |
| Moisture Sensitivity Level (MSL) | Not Applicable | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 13 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Liquid Crystal Polymer (LCP), Glass Filled |
| Insulation Height | 0.213" (5.40mm) | Insulation Color | Black |
| Ingress Protection | - | Features | - |
| Fastening Type | Latch Holder | Detailed Description | Connector Header Through Hole, Right Angle 24 position 0.050" (1.27mm) |
| Current Rating | - | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Copper Alloy |
| Contact Length - Post | 0.118" (3.00mm) | Contact Length - Mating | 0.120" (3.05mm) |
| Contact Finish Thickness - Post | 78.7µin (2.00µm) | Contact Finish Thickness - Mating | 2.00µin (0.051µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Gold |
| Connector Type | Header | Applications | Automotive, General Purpose, Telecommunications |
