2010212012

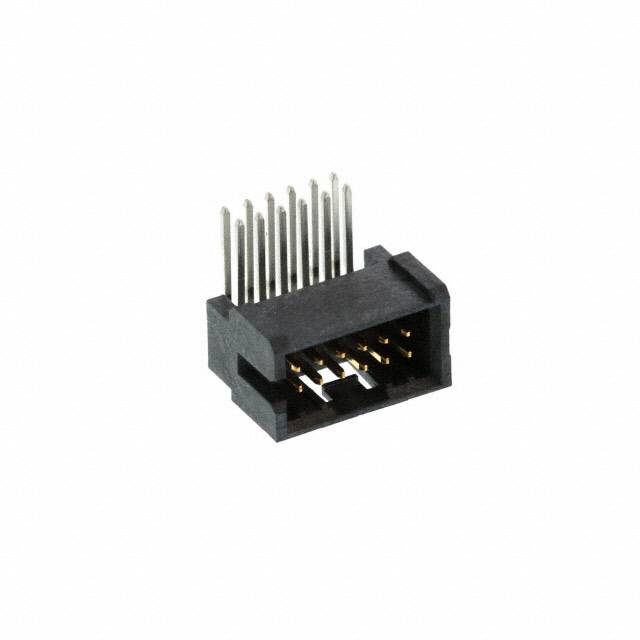

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 2010212012 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 2010212012 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 2010212012 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | SLIM-GRID HEADER, 12 CIRCUITS, T |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 51 pcs | 102 pcs | 510 pcs | |
|---|---|---|---|---|---|
| $0.693 | $0.566 | $0.54 | $0.45 | ||
| 1020 pcs | 5049 pcs | 10047 pcs | |||
| $0.386 | $0.342 | $0.334 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 2010212012 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | SLIM-GRID HEADER, 12 CIRCUITS, T | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 59841 pcs | Data sheet | Slim-Grid Datasheet2009890001 Prod Spec2010212012 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 125V |
| Termination | Solder | Style | Board to Board |
| Shrouding | Shrouded - 4 Wall | Series | Slim-Grid 201021 |
| Row Spacing - Mating | 0.050" (1.27mm) | Pitch - Mating | 0.050" (1.27mm) |
| Packaging | Tube | Overall Contact Length | - |
| Other Names | 201021-2012 2010212012-ND WM16697 |
Operating Temperature | -55°C ~ 105°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 12 | Mounting Type | Through Hole, Right Angle |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | - |
| Manufacturer Standard Lead Time | 13 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Liquid Crystal Polymer (LCP), Glass Filled | Insulation Height | 0.213" (5.40mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | - | Fastening Type | Latch Holder |
| Detailed Description | Connector Header Through Hole, Right Angle 12 position 0.050" (1.27mm) | Current Rating | - |
| Contact Type | Male Pin | Contact Shape | Square |
| Contact Material | Copper Alloy | Contact Length - Post | 0.118" (3.00mm) |
| Contact Length - Mating | 0.120" (3.05mm) | Contact Finish Thickness - Post | 78.7µin (2.00µm) |
| Contact Finish Thickness - Mating | 2.00µin (0.051µm) | Contact Finish - Post | Tin |
| Contact Finish - Mating | Gold | Connector Type | Header |
| Applications | Automotive, General Purpose, Telecommunications |
