1727040026

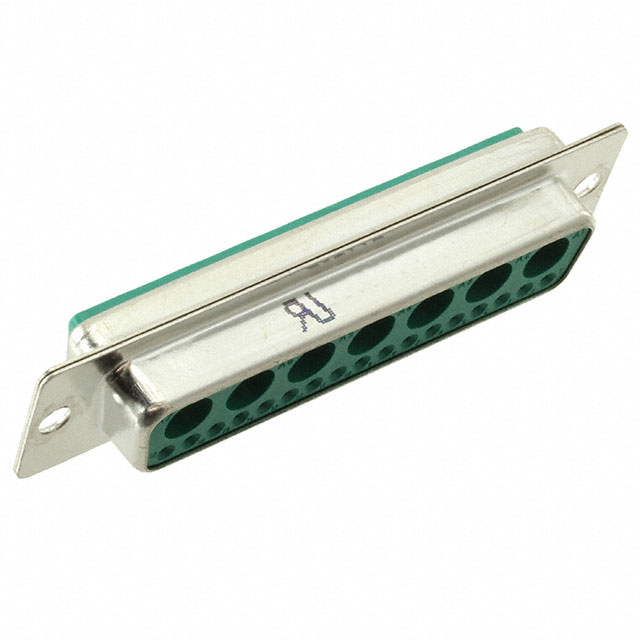

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1727040026 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 1727040026 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 1727040026 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | CONN D-SUB RCPT 24POS PNL MNT |
| Lead Free Status / RoHS Status | Not applicable / Not applicable |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $7.129 | $6.437 | $6.167 | $5.781 | ||
| 100 pcs | 250 pcs | 500 pcs | |||
| $5.589 | $5.28 | $5.126 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 1727040026 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | CONN D-SUB RCPT 24POS PNL MNT | Lead Free Status / RoHS Status | Not applicable / Not applicable |
| Quantity Available | 6028 pcs | Data sheet | Mixed Layout Connector Datasheet |
| Category | Connectors, Interconnects | Wire Gauge | 20 AWG |
| Voltage Rating | - | Termination | Solder Cup |
| Shell Size, Connector Layout | 5 (DD, D) - 24W7 | Shell Material, Finish | Steel, Tin Plated |
| Series | 172704 | Packaging | Bulk |
| Other Names | 172704-0026 FM24W7SA-K121 WM12471 |
Operating Temperature | -55°C ~ 130°C |
| Number of Rows | 2 | Number of Positions | 24 (17 + 7 Coax or Power) |
| Mounting Type | Panel Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 10 Weeks |
| Lead Free Status / RoHS Status | Not applicable / Not applicable | Ingress Protection | - |
| Housing Material | Polybutylene Terephthalate (PBT) | Flange Feature | Housing/Shell (Unthreaded) |
| Features | - | Detailed Description | 24 (17 + 7 Coax or Power) Position D-Sub, Combo Receptacle, Female Sockets Connector |
| Current Rating | 5A | Contact Type | Signal and Coax or Power (Not Included) |
| Contact Material | Brass | Contact Form | - |
| Contact Finish Thickness | 3.90µin (0.099µm) | Contact Finish | Gold |
| Connector Type | Receptacle, Female Sockets | Connector Style | D-Sub, Combo |
| Color | Green | Backset Spacing | - |
