1727040023

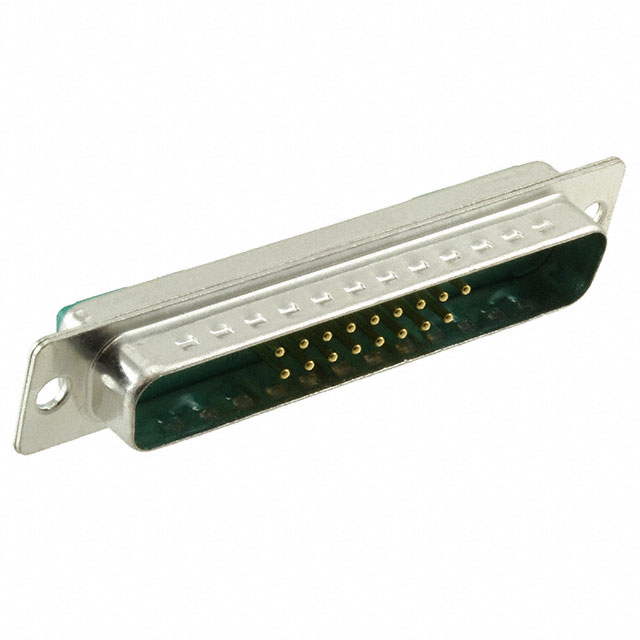

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1727040023 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 1727040023 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 1727040023 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | CONN D-SUB PLUG 21POS PNL MNT |
| Lead Free Status / RoHS Status | Not applicable / Not applicable |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $3.926 | $3.757 | $3.416 | $3.245 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $3.159 | $2.818 | $2.647 | $2.34 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 1727040023 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | CONN D-SUB PLUG 21POS PNL MNT | Lead Free Status / RoHS Status | Not applicable / Not applicable |
| Quantity Available | 15533 pcs | Data sheet | Mixed Layout Connector Datasheet |
| Category | Connectors, Interconnects | Wire Gauge | 20 AWG |
| Voltage Rating | - | Termination | Solder Cup |
| Shell Size, Connector Layout | 4 (DC, C) - 21WA4 | Shell Material, Finish | Steel, Tin Plated |
| Series | FM, FCT | Packaging | Bulk |
| Other Names | 172704-0023 FM21WA4PA-K120 WM12468 |
Operating Temperature | -55°C ~ 130°C |
| Number of Rows | 2 | Number of Positions | 21 (17 + 4 Coax or Power) |
| Mounting Type | Panel Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 10 Weeks |
| Lead Free Status / RoHS Status | Not applicable / Not applicable | Ingress Protection | - |
| Housing Material | Polybutylene Terephthalate (PBT) | Flange Feature | Housing/Shell (Unthreaded) |
| Features | Grounding Indents | Detailed Description | 21 (17 + 4 Coax or Power) Position D-Sub, Combo Plug, Male Pins Connector |
| Current Rating | 5A | Contact Type | Signal and Coax or Power (Not Included) |
| Contact Material | Brass | Contact Form | - |
| Contact Finish Thickness | 3.90µin (0.099µm) | Contact Finish | Gold |
| Connector Type | Plug, Male Pins | Connector Style | D-Sub, Combo |
| Color | Green | Backset Spacing | - |
