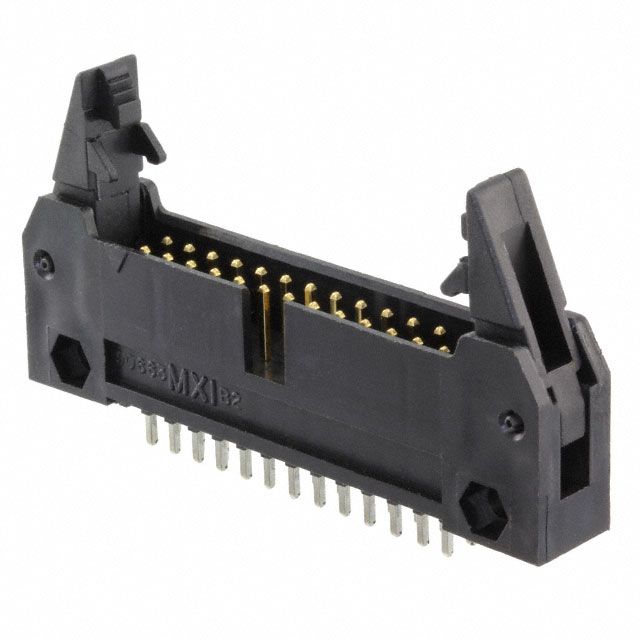

0906631261
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 0906631261 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 0906631261 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 0906631261 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | QF50 SRD HDR VT .1AU 26POS |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 432 pcs | ||
|---|---|---|---|---|---|
| $0.909 | $0.873 | $0.636 | |||
| 864 pcs | 1296 pcs | 5184 pcs | |||
| $0.564 | $0.527 | $0.473 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 0906631261 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | QF50 SRD HDR VT .1AU 26POS | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 71580 pcs | Data sheet | 90663-1 Series Drawing |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | QF 50 90663 |
| Row Spacing - Mating | 0.100" (2.54mm) | Pitch - Mating | 0.100" (2.54mm) |
| Packaging | Tray | Overall Contact Length | 0.657" (16.70mm) |
| Other Names | 0906-63-1261 090663-1261 0906631261-ND 906-63-1261 90663-1261 906631261 WM14743 |
Operating Temperature | - |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 26 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 12 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyester, Glass Filled |
| Insulation Height | 0.642" (16.30mm) | Insulation Color | Black |
| Ingress Protection | - | Features | Mounting Flange |
| Fastening Type | Latch Lock/Eject Hooks | Detailed Description | Connector Header Through Hole 26 position 0.100" (2.54mm) |
| Current Rating | - | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Brass |
| Contact Length - Post | 0.138" (3.50mm) | Contact Length - Mating | 0.200" (5.08mm) |
| Contact Finish Thickness - Post | 118.1µin (3.00µm) | Contact Finish Thickness - Mating | 3.90µin (0.099µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Gold |
| Connector Type | Header | Applications | - |
