0906631202

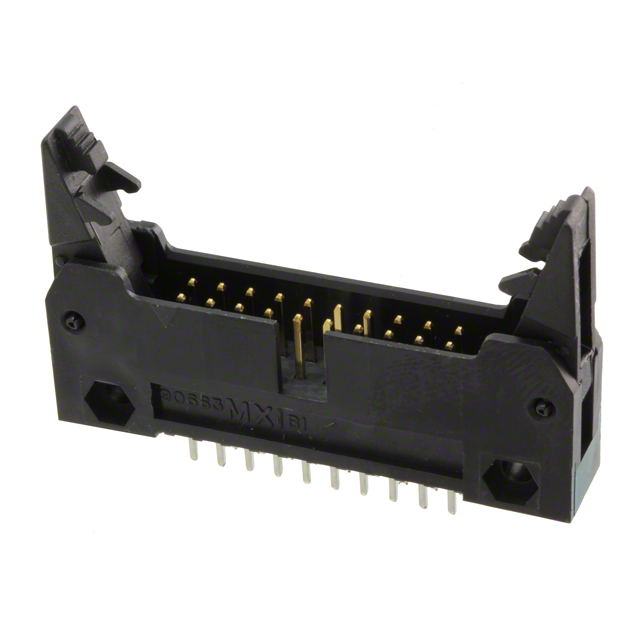

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 0906631202 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 0906631202 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 0906631202 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | QF50 SRD HDR VT .76AU 20POS |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | ||
|---|---|---|---|---|---|
| $1.013 | $0.972 | $0.81 | |||
| 504 pcs | 1008 pcs | 5040 pcs | |||
| $0.688 | $0.587 | $0.526 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 0906631202 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | QF50 SRD HDR VT .76AU 20POS | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 67153 pcs | Data sheet | 90663-1 Series Drawing |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | QF 50 90663 |
| Row Spacing - Mating | 0.100" (2.54mm) | Pitch - Mating | 0.100" (2.54mm) |
| Packaging | Tray | Overall Contact Length | 0.657" (16.70mm) |
| Other Names | 0906-63-1202 090663-1202 0906631202-ND 906-63-1202 90663-1202 906631202 WM14742 |
Operating Temperature | - |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 20 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 11 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyester, Glass Filled |
| Insulation Height | 0.642" (16.30mm) | Insulation Color | Black |
| Ingress Protection | - | Features | Mounting Flange |
| Fastening Type | Latch Lock/Eject Hooks | Detailed Description | Connector Header Through Hole 20 position 0.100" (2.54mm) |
| Current Rating | - | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Brass |
| Contact Length - Post | 0.138" (3.50mm) | Contact Length - Mating | 0.200" (5.08mm) |
| Contact Finish Thickness - Post | 118.1µin (3.00µm) | Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Gold |
| Connector Type | Header | Applications | - |
