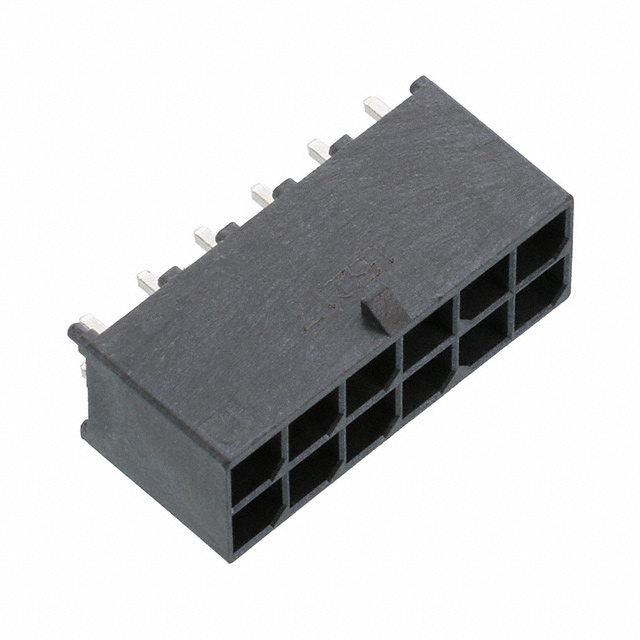

0768290112
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 0768290112 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 0768290112 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 0768290112 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | MEGAFIT SLIM VERT HDR ASSY 12 CK |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 46 pcs | 138 pcs | 506 pcs | 1012 pcs |
|---|---|---|---|---|---|
| $1.692 | $1.489 | $1.354 | $1.151 | $0.982 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | 0768290112 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | MEGAFIT SLIM VERT HDR ASSY 12 CK | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 32761 pcs | Data sheet | 0768290112 Drawing73823-100 Appl Spec76823-100 Prod SpecMega-Fit Series Brochure |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | Mega-Fit |
| Row Spacing - Mating | 0.224" (5.70mm) | Pitch - Mating | 0.224" (5.70mm) |
| Packaging | Tray | Overall Contact Length | - |
| Other Names | 076829-0112 76829-0112 768290112 WM16841 |
Operating Temperature | - |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 12 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 17 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Liquid Crystal Polymer (LCP) |
| Insulation Height | 0.583" (14.80mm) | Insulation Color | Black |
| Ingress Protection | - | Features | Board Guide, Glow Wire Compliant |
| Fastening Type | Locking Ramp | Detailed Description | Connector Header Through Hole 12 position 0.224" (5.70mm) |
| Current Rating | - | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Copper |
| Contact Length - Post | 0.147" (3.73mm) | Contact Length - Mating | - |
| Contact Finish Thickness - Post | 60.0µin (1.52µm) | Contact Finish Thickness - Mating | 60.0µin (1.52µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
| Connector Type | Header | Applications | Automotive, General Purpose, Industrial, Telecommunications |
