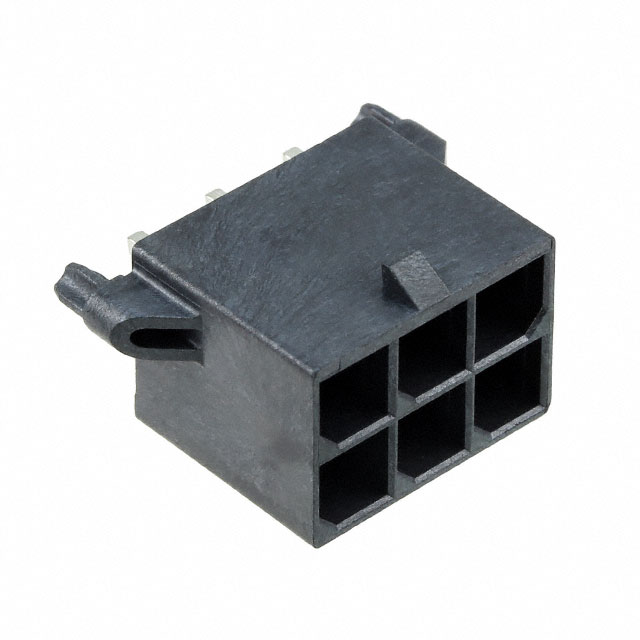

0768290006
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 0768290006 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 0768290006 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 0768290006 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | DUAL ROW VERT HEADER TIN 6CKT |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.783 | $0.71 | $0.667 | $0.638 | $0.609 | |
| 250 pcs | 960 pcs | 1920 pcs | 2880 pcs | ||
| $0.551 | $0.493 | $0.42 | $0.406 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 0768290006 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | DUAL ROW VERT HEADER TIN 6CKT | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 84553 pcs | Data sheet | MEGA-FIT W-B Conn System Prod SpecMega-Fit® Pwr Conn DatasheetMega-Fit® Application Spec768290006 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | Mega-Fit |
| Row Spacing - Mating | 0.224" (5.70mm) | Pitch - Mating | 0.224" (5.70mm) |
| Packaging | Tray | Overall Contact Length | - |
| Other Names | 076829-0006 76829-0006 768290006 WM11977 |
Operating Temperature | - |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 6 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 19 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Liquid Crystal Polymer (LCP) |
| Insulation Height | 0.583" (14.80mm) | Insulation Color | Black |
| Ingress Protection | - | Features | Board Guide, Glow Wire Compliant |
| Fastening Type | Locking Ramp | Detailed Description | Connector Header Through Hole 6 position 0.224" (5.70mm) |
| Current Rating | - | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Copper |
| Contact Length - Post | 0.147" (3.73mm) | Contact Length - Mating | - |
| Contact Finish Thickness - Post | 60.0µin (1.52µm) | Contact Finish Thickness - Mating | 60.0µin (1.52µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
| Connector Type | Header | Applications | Automotive, General Purpose, Industrial, Telecommunications |
