0767638501

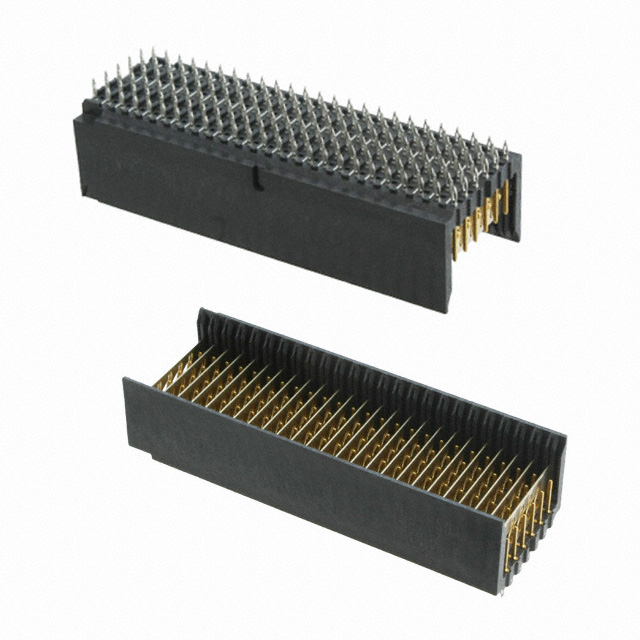

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 0767638501 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 0767638501 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 0767638501 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | VHDM-H BP HDR 6X25 OPEN |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 0767638501 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | VHDM-H BP HDR 6X25 OPEN | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5031 pcs | Data sheet | VHDM H Series76763 Series Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 120V |
| Termination | Press-Fit | Series | VHDM H |
| Pitch | 0.079" (2.00mm) | Packaging | Tube |
| Other Names | 076763-8501 76763-8501 767638501 WM4471 |
Operating Temperature | -55°C ~ 85°C |
| Number of Rows | 6 | Number of Positions Loaded | All |
| Number of Positions | 150 | Number of Columns | 25 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Features | Shielded | Current Rating | 1A |
| Contact Layout, Typical | - | Contact Finish Thickness | 30.0µin (0.76µm) |
| Contact Finish | Gold | Connector Usage | - |
| Connector Type | Header, Male Pins | Connector Style | VHDM |
| Color | Black |
