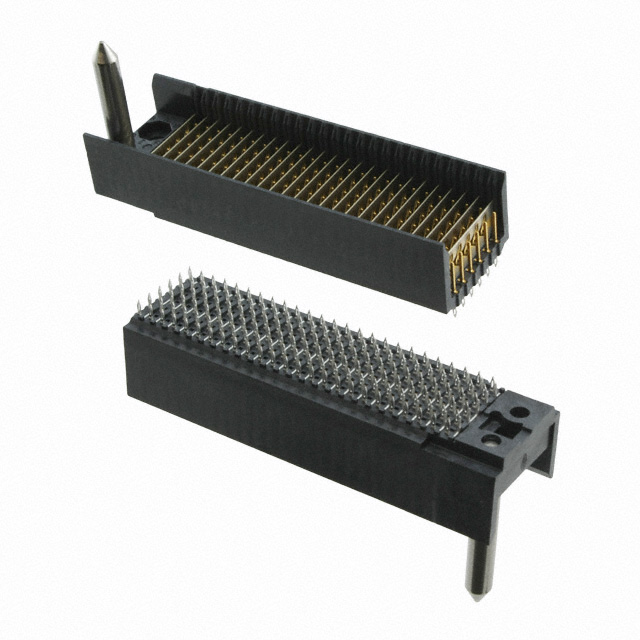

0767618501
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 0767618501 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 0767618501 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 0767618501 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | VHDM-H BP HDR 6X25 GUIDE LEFT |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 144 pcs | ||||
|---|---|---|---|---|---|
| $9.426 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 0767618501 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | VHDM-H BP HDR 6X25 GUIDE LEFT | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 3254 pcs | Data sheet | VHDM H Series76761 Series Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 120V |
| Termination | Press-Fit | Series | VHDM H 76761 |
| Pitch | 0.079" (2.00mm) | Packaging | Tube |
| Other Names | 076761-8501 76761-8501 767618501 WM4467 |
Operating Temperature | -55°C ~ 105°C |
| Number of Rows | 6 | Number of Positions Loaded | All |
| Number of Positions | 150 | Number of Columns | 25 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 7 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Features | Shielded |
| Current Rating | 1A | Contact Layout, Typical | - |
| Contact Finish Thickness | 30.0µin (0.76µm) | Contact Finish | Gold |
| Connector Usage | - | Connector Type | Header, Male Pins |
| Connector Style | VHDM, Guide Left | Color | Black |
