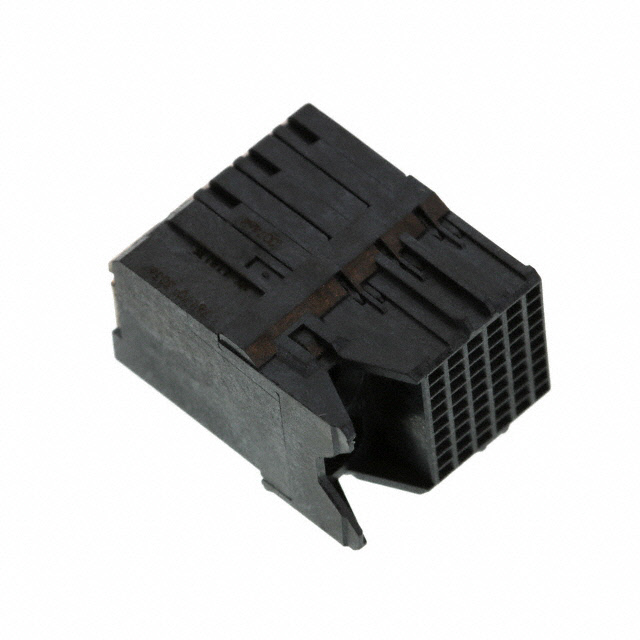

0761703036
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 0761703036 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 0761703036 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 0761703036 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | IMPACT DC 3X6 GL SN |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $3.028 | $2.897 | $2.634 | $2.502 | ||
| 100 pcs | 294 pcs | 588 pcs | 1176 pcs | ||
| $2.436 | $2.173 | $2.041 | $1.804 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 0761703036 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | IMPACT DC 3X6 GL SN | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 20300 pcs | Data sheet | 761703036 DrawingImpact™ 100Ω Conn System Datasheet |
| Category | Connectors, Interconnects | Voltage Rating | 30V |
| Termination | Press-Fit | Series | Impact 76170 |
| Pitch | 0.053" (1.35mm) | Packaging | Tray |
| Other Names | 0761-70-3036 0761703036-ND 761-70-3036 76170-3036 761703036 WM22028 |
Operating Temperature | -55°C ~ 85°C |
| Number of Rows | 9 | Number of Positions Loaded | All |
| Number of Positions | 54 | Number of Columns | 6 |
| Mounting Type | Board Edge, Through Hole, Right Angle | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 5 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Features | Board Guide |
| Current Rating | - | Contact Layout, Typical | 18 Differential Pairs |
| Contact Finish Thickness | 30.0µin (0.76µm) | Contact Finish | Gold |
| Connector Usage | - | Connector Type | Receptacle, Female Sockets |
| Connector Style | Impact, Guide Left | Color | Black |
