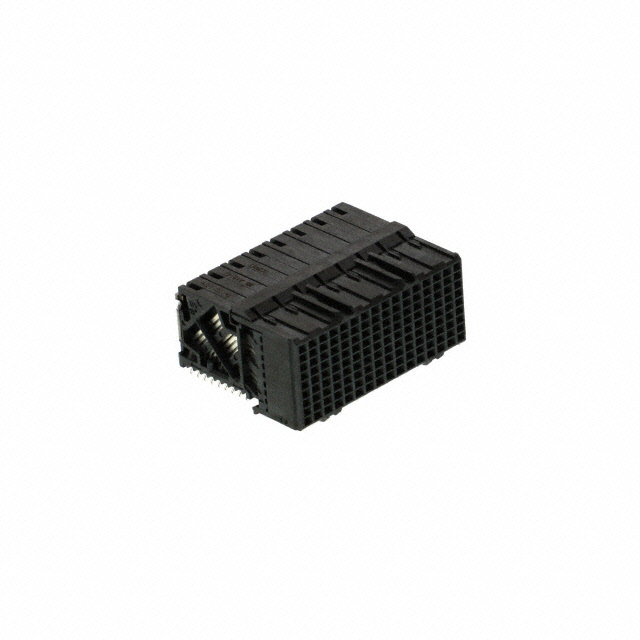

0761701026
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 0761701026 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 0761701026 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 0761701026 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | IMPACT DC 3X16 OPEN SN |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $6.094 | $5.66 | $5.079 | $4.934 | ||
| 168 pcs | 336 pcs | 504 pcs | |||
| $4.354 | $4.063 | $3.976 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 0761701026 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | IMPACT DC 3X16 OPEN SN | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 7723 pcs | Data sheet | 761701026 DrawingImpact™ 100Ω Conn System Datasheet |
| Category | Connectors, Interconnects | Voltage Rating | 30V |
| Termination | Press-Fit | Series | Impact 76170 |
| Pitch | 0.053" (1.35mm) | Packaging | Tray |
| Other Names | 0761-70-1026 0761701026-ND 761-70-1026 76170-1026 761701026 WM20460 |
Operating Temperature | -55°C ~ 85°C |
| Number of Rows | 9 | Number of Positions Loaded | All |
| Number of Positions | 144 | Number of Columns | 16 |
| Mounting Type | Board Edge, Through Hole, Right Angle | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 5 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Features | - |
| Current Rating | - | Contact Layout, Typical | 48 Differential Pairs |
| Contact Finish Thickness | 30.0µin (0.76µm) | Contact Finish | Gold |
| Connector Usage | - | Connector Type | Receptacle, Female Sockets |
| Connector Style | Impact | Color | Black |
