0545480870

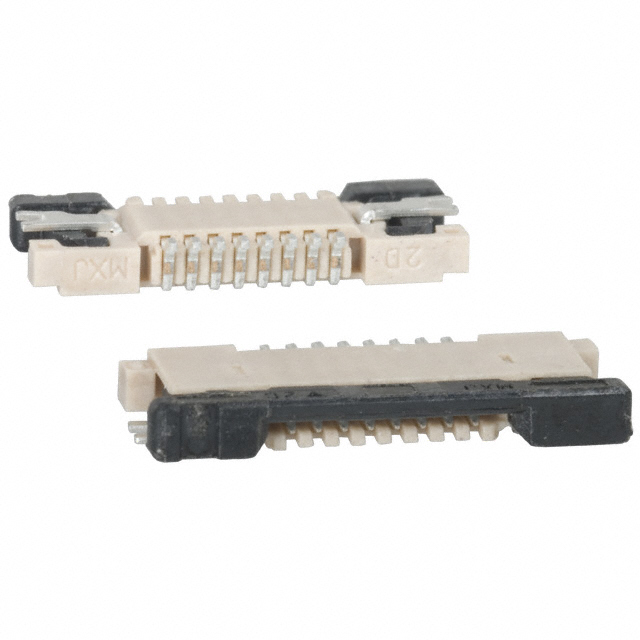

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 0545480870 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 0545480870 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 0545480870 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | CONN FFC BOTTOM 8POS 0.50MM R/A |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 0545480870 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | CONN FFC BOTTOM 8POS 0.50MM R/A | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4617 pcs | Data sheet | 54548-0870 |
| Category | Connectors, Interconnects | Voltage Rating | 50V |
| Termination | Solder | Series | Easy-On 54548 |
| Pitch | 0.020" (0.50mm) | Packaging | Tape & Reel (TR) |
| Other Names | 054548-0870 054548-0870-C 0545480870-C 0545480870-ND 54548-0819 54548-0870 54548-0870-ND 545480870 545480870-C WM1545 WM1545-ND WM1545TR |
Operating Temperature | -20°C ~ 85°C |
| Number of Positions | 8 | Mounting Type | Surface Mount, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Cycles | - |
| Material Flammability Rating | UL94 V-0 | Locking Feature | Flip Lock |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Housing Material | Liquid Crystal Polymer (LCP) |
| Housing Color | - | Height Above Board | 0.047" (1.20mm) |
| Flat Flex Type | FFC, FPC | Features | Solder Retention, Zero Insertion Force (ZIF) |
| FFC, FCB Thickness | 0.30mm | Detailed Description | 8 Position FFC, FPC Connector Contacts, Bottom 0.020" (0.50mm) Surface Mount, Right Angle |
| Current Rating | 0.5A | Contact Material | Phosphor Bronze |
| Contact Finish Thickness | 8.00µin (0.203µm) | Contact Finish | Tin Bismuth |
| Connector/Contact Type | Contacts, Bottom | Cable End Type | Straight, Tapered |
| Actuator Material | Polyphenylene Sulfide (PPS) | Actuator Color | - |
