0545480671

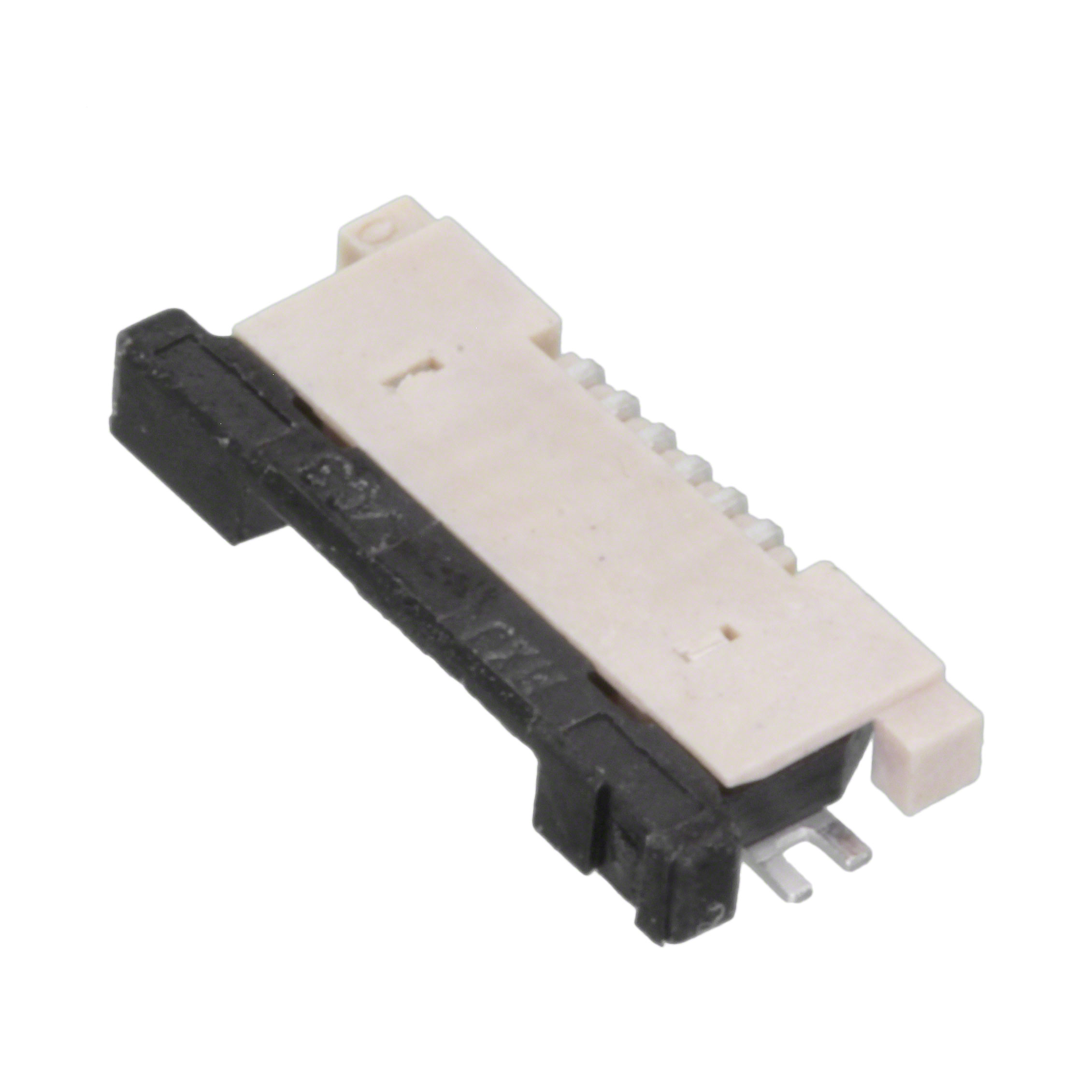

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 0545480671 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 0545480671 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 0545480671 |
|---|---|
| Manufacturer | Molex, LLC |
| Description | CONN FFC BOTTOM 6POS 0.50MM R/A |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 3000 pcs | 6000 pcs | 9000 pcs | ||
|---|---|---|---|---|---|
| $0.26 | $0.247 | $0.242 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 0545480671 | Manufacturer | Molex, LLC |
|---|---|---|---|
| Description | CONN FFC BOTTOM 6POS 0.50MM R/A | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 83026 pcs | Data sheet | 54548 Series Spec545480671 Drawing |
| Category | Connectors, Interconnects | Voltage - DC Spark Over (Nom) | Phosphor Bronze |
| Termination | Solder | Simplex/Duplex | - |
| Series | Easy-On™ 54548 | RoHS Status | Tape & Reel (TR) |
| Plug/Mating Plug Diameter | - | Pitch - Connector | 50V |
| Other Names | 0545-48-0671 0545480671-ND 545-48-0671 54548-0671 54548-0671-ND 545480671 WM11101TR |
Operating Temperature | -20°C ~ 85°C |
| Number of Positions | 6 | Number of Conductors | 0.020" (0.50mm) |
| Mounting Type | Surface Mount, Right Angle | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 18 Weeks |
| Manufacturer Part Number | 0545480671 | Locking Feature | 0.30mm |
| Height Above Board | 0.047" (1.20mm) | Features | Solder Retention, Zero Insertion Force (ZIF) |
| FFC, FCB Thickness | Contacts, Bottom | Expanded Description | 6 Position FFC, FPC Connector Contacts, Bottom 0.020" (0.50mm) Surface Mount, Right Angle |
| Description | CONN FFC BOTTOM 6POS 0.50MM R/A | Current Rating | 0.5A |
| Contact Finish Thickness | Gold | Connector/Contact Type | FFC, FPC |
| Center Contact Finish | 20 | Cable Opening | Liquid Crystal Polymer (LCP) |
| Cable End Type | Flip Lock | Cable Diameter | - |
| Actuator Material | Straight, Tapered | Actuator Color | Polyphenylene Sulfide (PPS) |
