0527451797

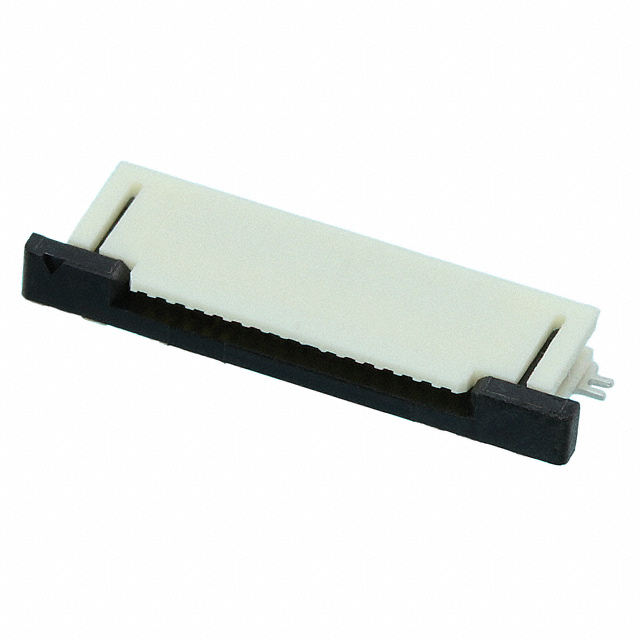

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 0527451797 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 0527451797 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 0527451797 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | CONN FFC TOP 17POS 0.50MM R/A |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $0.686 | $0.624 | $0.585 | $0.56 | ||
| 100 pcs | 250 pcs | 500 pcs | |||
| $0.535 | $0.484 | $0.445 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 0527451797 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | CONN FFC TOP 17POS 0.50MM R/A | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 70320 pcs | Data sheet | 527451797 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 50V |
| Termination | Solder | Series | 52745 |
| Pitch | 0.020" (0.50mm) | Packaging | Cut Tape (CT) |
| Other Names | WM11116CT | Operating Temperature | -20°C ~ 85°C |
| Number of Positions | 17 | Mounting Type | Surface Mount, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Cycles | 20 |
| Material Flammability Rating | - | Manufacturer Standard Lead Time | 10 Weeks |
| Locking Feature | Slide Lock | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Housing Material | Polyamide (PA46), Nylon 4/6, Glass Filled | Housing Color | - |
| Height Above Board | 0.079" (2.00mm) | Flat Flex Type | - |
| Features | Solder Retention, Zero Insertion Force (ZIF) | FFC, FCB Thickness | 0.30mm |
| Detailed Description | 17 Position Connector Contacts, Top 0.020" (0.50mm) Surface Mount, Right Angle | Current Rating | 0.5A |
| Contact Material | Phosphor Bronze | Contact Finish Thickness | - |
| Contact Finish | Gold | Connector/Contact Type | Contacts, Top |
| Cable End Type | Straight | Actuator Material | - |
| Actuator Color | - |
