0527451497

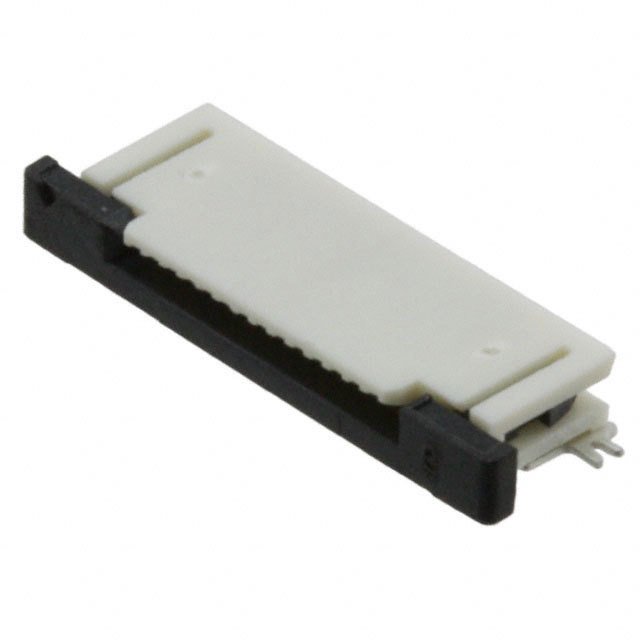

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 0527451497 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 0527451497 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 0527451497 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | CONN FFC TOP 14POS 0.50MM R/A |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1000 pcs | 2000 pcs | 3000 pcs | 5000 pcs | 10000 pcs |
|---|---|---|---|---|---|
| $0.284 | $0.266 | $0.258 | $0.249 | $0.236 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | 0527451497 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | CONN FFC TOP 14POS 0.50MM R/A | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 93001 pcs | Data sheet | 527451497 |
| Category | Connectors, Interconnects | Voltage Rating | 50V |
| Termination | Solder | Series | 52745 |
| Pitch | 0.020" (0.50mm) | Packaging | Tape & Reel (TR) |
| Other Names | 52745-1497 527451497 WM3769TR |
Operating Temperature | -20°C ~ 85°C |
| Number of Positions | 14 | Mounting Type | Surface Mount, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Cycles | 20 |
| Material Flammability Rating | - | Manufacturer Standard Lead Time | 10 Weeks |
| Locking Feature | Slide Lock | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Housing Material | Polyamide (PA46), Nylon 4/6, Glass Filled | Housing Color | - |
| Height Above Board | 0.079" (2.00mm) | Flat Flex Type | - |
| Features | Solder Retention, Zero Insertion Force (ZIF) | FFC, FCB Thickness | 0.30mm |
| Detailed Description | 14 Position Connector Contacts, Top 0.020" (0.50mm) Surface Mount, Right Angle | Current Rating | 0.5A |
| Contact Material | Phosphor Bronze | Contact Finish Thickness | - |
| Contact Finish | Gold | Connector/Contact Type | Contacts, Top |
| Cable End Type | Straight | Actuator Material | - |
| Actuator Color | - |
