0525591033

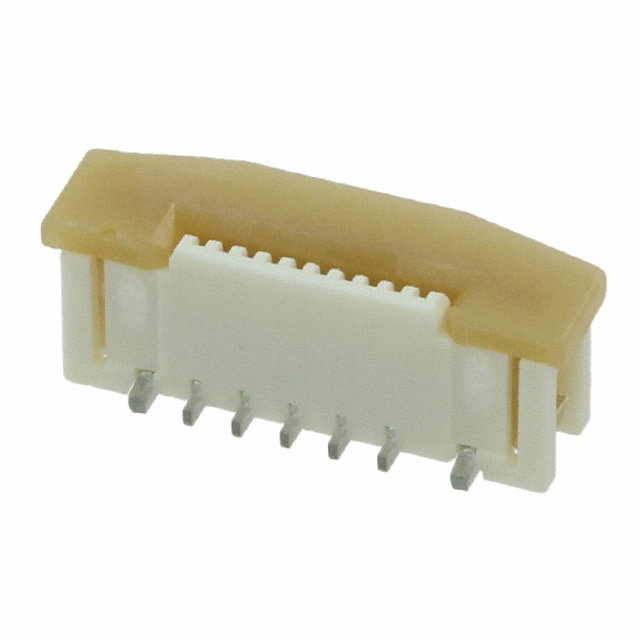

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 0525591033 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 0525591033 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 0525591033 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | CONN FFC VERT 10POS 0.50MM SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $0.527 | $0.462 | $0.435 | $0.417 | ||
| 100 pcs | 250 pcs | 500 pcs | |||
| $0.399 | $0.362 | $0.326 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 0525591033 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | CONN FFC VERT 10POS 0.50MM SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 73364 pcs | Data sheet | 52559-xx3(3,4) Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 50V |
| Termination | Solder | Series | Easy-On 52559 |
| Pitch | 0.020" (0.50mm) | Packaging | Cut Tape (CT) |
| Other Names | WM10984CT | Operating Temperature | -40°C ~ 85°C |
| Number of Positions | 10 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Cycles | 20 |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 10 Weeks |
| Locking Feature | Slide Lock | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Housing Material | Polyamide (PA), Nylon, Glass Filled | Housing Color | Natural |
| Height Above Board | 0.154" (3.90mm) | Flat Flex Type | FFC, FPC |
| Features | Zero Insertion Force (ZIF) | FFC, FCB Thickness | 0.30mm |
| Detailed Description | 10 Position FFC, FPC Connector Contacts, Vertical, 1 Sided 0.020" (0.50mm) Surface Mount | Current Rating | 0.5A |
| Contact Material | Copper Alloy | Contact Finish Thickness | 39.4µin (1.00µm) |
| Contact Finish | Tin Bismuth | Connector/Contact Type | Contacts, Vertical, 1 Sided |
| Cable End Type | Straight, Tapered | Actuator Material | Polyphenylene Sulfide (PPS), Glass Filled |
| Actuator Color | Brown |
