0525590853

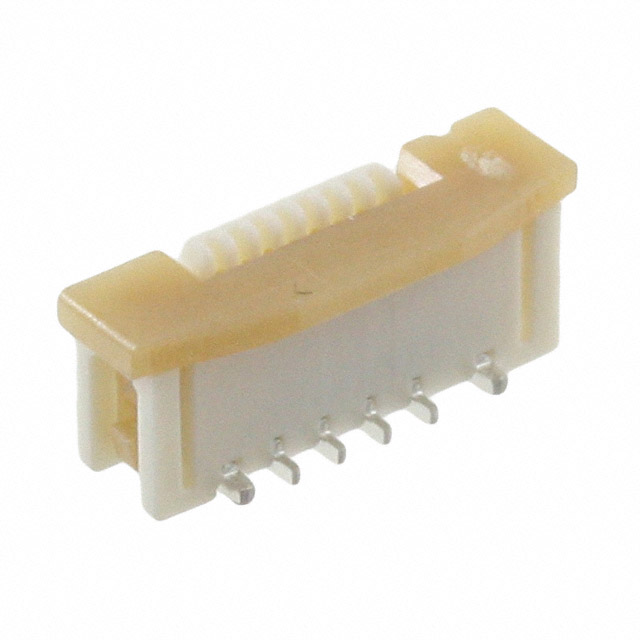

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 0525590853 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 0525590853 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 0525590853 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | CONN FFC VERT 8POS 0.50MM SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $0.486 | $0.427 | $0.402 | $0.385 | ||
| 100 pcs | 250 pcs | 500 pcs | |||
| $0.368 | $0.335 | $0.301 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 0525590853 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | CONN FFC VERT 8POS 0.50MM SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 70766 pcs | Data sheet | 0525590853 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 50V |
| Termination | Solder | Series | Easy-On 52559 |
| Pitch | 0.020" (0.50mm) | Packaging | Cut Tape (CT) |
| Other Names | WM6757CT | Operating Temperature | -40°C ~ 85°C |
| Number of Positions | 8 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Cycles | 20 |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 10 Weeks |
| Locking Feature | Slide Lock | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Housing Material | Polyamide (PA46), Nylon 4/6 | Housing Color | - |
| Height Above Board | 0.154" (3.90mm) | Flat Flex Type | FFC, FPC |
| Features | Zero Insertion Force (ZIF) | FFC, FCB Thickness | 0.30mm |
| Detailed Description | 8 Position FFC, FPC Connector Contacts, Vertical, 1 Sided 0.020" (0.50mm) Surface Mount | Current Rating | 0.5A |
| Contact Material | Phosphor Bronze | Contact Finish Thickness | 3.90µin (0.099µm) |
| Contact Finish | Gold | Connector/Contact Type | Contacts, Vertical, 1 Sided |
| Cable End Type | Straight, Tapered | Actuator Material | Polyphenylene Sulfide (PPS) |
| Actuator Color | - |
