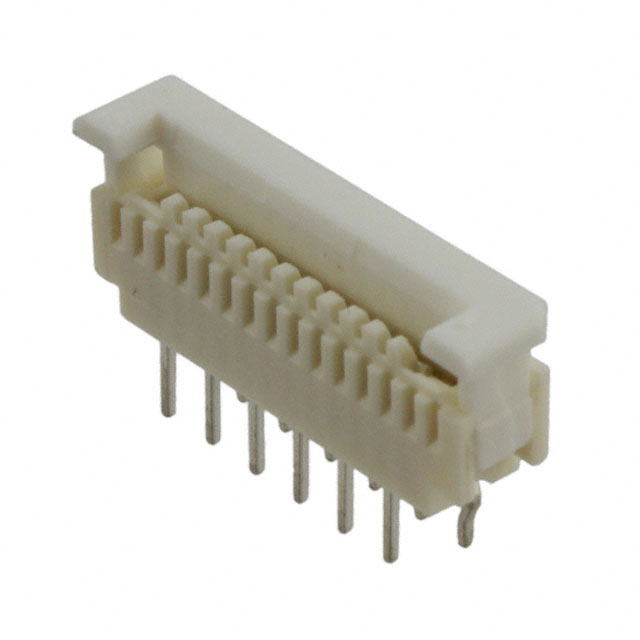

0520301229
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 0520301229 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 0520301229 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 0520301229 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | CONN FPC VERT 12POS 1.00MM PCB |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.473 | $0.417 | $0.392 | $0.376 | $0.359 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $0.327 | $0.294 | $0.261 | $0.237 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 0520301229 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | CONN FPC VERT 12POS 1.00MM PCB | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 86982 pcs | Data sheet | 52030-1229 |
| Category | Connectors, Interconnects | Voltage Rating | 50V |
| Termination | Kinked Pin | Series | 52030 |
| Pitch | 0.039" (1.00mm) | Packaging | Tray |
| Other Names | 052030-1229 052030-1229-C 0520301229-C 52030-1229 52030-1229-C 520301229 520301229-C WM1184 |
Operating Temperature | -20°C ~ 80°C |
| Number of Positions | 12 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Cycles | - |
| Material Flammability Rating | UL94 V-0 | Locking Feature | Slide Lock |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Housing Material | Polyamide (PA66), Nylon 6/6 |
| Housing Color | - | Height Above Board | 0.205" (5.20mm) |
| Flat Flex Type | FPC | Features | Zero Insertion Force (ZIF) |
| FFC, FCB Thickness | 0.30mm | Detailed Description | 12 Position FPC Connector Contacts, Vertical, 1 Sided 0.039" (1.00mm) Through Hole |
| Current Rating | 1A | Contact Material | Phosphor Bronze |
| Contact Finish Thickness | - | Contact Finish | Tin Bismuth |
| Connector/Contact Type | Contacts, Vertical, 1 Sided | Cable End Type | Tapered |
| Actuator Material | Polyester | Actuator Color | - |
