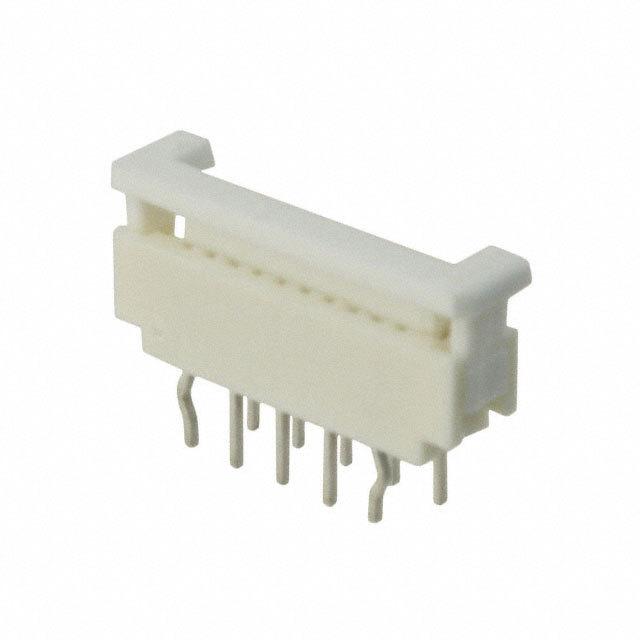

0520301029
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 0520301029 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 0520301029 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 0520301029 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | CONN FPC VERT 10POS 1.00MM PCB |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.425 | $0.375 | $0.353 | $0.338 | $0.324 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $0.294 | $0.265 | $0.235 | $0.213 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 0520301029 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | CONN FPC VERT 10POS 1.00MM PCB | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 106133 pcs | Data sheet | 52030-1029 |
| Category | Connectors, Interconnects | Voltage Rating | 50V |
| Termination | Kinked Pin | Series | 52030 |
| Pitch | 0.039" (1.00mm) | Packaging | Tray |
| Other Names | 052030-1029 052030-1029-C 0520301029-C 52030-1029 52030-1029-C 520301029 520301029-C WM1183 |
Operating Temperature | -20°C ~ 80°C |
| Number of Positions | 10 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Cycles | - |
| Material Flammability Rating | UL94 V-0 | Locking Feature | Slide Lock |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Housing Material | Polyamide (PA66), Nylon 6/6 |
| Housing Color | - | Height Above Board | 0.205" (5.20mm) |
| Flat Flex Type | FPC | Features | Zero Insertion Force (ZIF) |
| FFC, FCB Thickness | 0.30mm | Detailed Description | 10 Position FPC Connector Contacts, Vertical, 1 Sided 0.039" (1.00mm) Through Hole |
| Current Rating | 1A | Contact Material | Phosphor Bronze |
| Contact Finish Thickness | - | Contact Finish | Tin Bismuth |
| Connector/Contact Type | Contacts, Vertical, 1 Sided | Cable End Type | Tapered |
| Actuator Material | Polyester | Actuator Color | - |
