0512964594

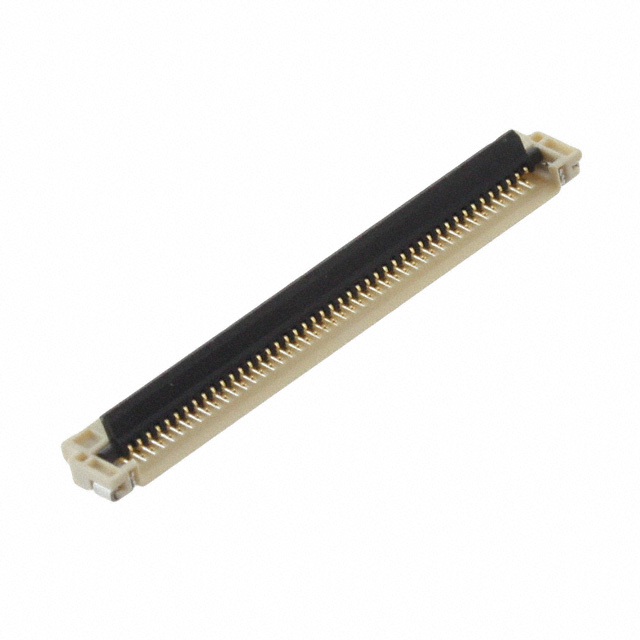

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 0512964594 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 0512964594 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 0512964594 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | CONN FFC BOTTOM 45POS 0.50MM R/A |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $2.016 | $1.934 | $1.773 | $1.693 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $1.612 | $1.411 | $1.37 | $1.169 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 0512964594 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | CONN FFC BOTTOM 45POS 0.50MM R/A | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 28524 pcs | Data sheet | 051296xx(94,51) Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 50V |
| Termination | Solder | Series | Easy-On 51296 |
| Pitch | 0.020" (0.50mm) | Packaging | Original-Reel® |
| Other Names | WM6749DKR | Operating Temperature | -20°C ~ 85°C |
| Number of Positions | 45 | Mounting Type | Surface Mount, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Cycles | 20 |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 22 Weeks |
| Locking Feature | Flip Lock | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Housing Material | Liquid Crystal Polymer (LCP), Glass Filled | Housing Color | Beige |
| Height Above Board | 0.051" (1.30mm) | Flat Flex Type | FFC, FPC |
| Features | Solder Retention, Zero Insertion Force (ZIF) | FFC, FCB Thickness | 0.30mm |
| Detailed Description | 45 Position FFC, FPC Connector Contacts, Bottom 0.020" (0.50mm) Surface Mount, Right Angle | Current Rating | 0.5A |
| Contact Material | Phosphor Bronze | Contact Finish Thickness | 3.90µin (0.099µm) |
| Contact Finish | Gold | Connector/Contact Type | Contacts, Bottom |
| Cable End Type | Straight, Tapered | Actuator Material | Polyamide (PA9T), Nylon 9T, Glass Filled |
| Actuator Color | Black |
