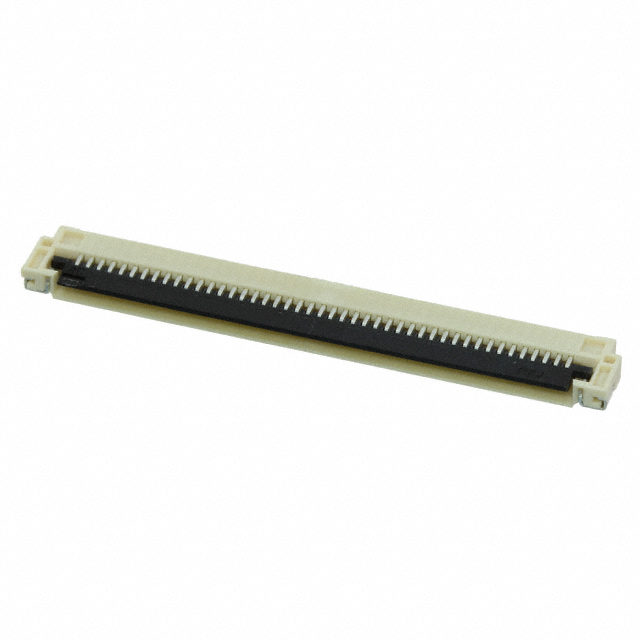

0512964533
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 0512964533 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 0512964533 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 0512964533 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | CONN FFC BOTTOM 45POS 0.50MM R/A |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $1.125 | $1.08 | $0.99 | $0.945 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $0.90 | $0.787 | $0.765 | $0.652 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 0512964533 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | CONN FFC BOTTOM 45POS 0.50MM R/A | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 55575 pcs | Data sheet | 51296-xx33 Drawing51296-**33 Spec Sheet |
| Category | Connectors, Interconnects | Voltage Rating | 50V |
| Termination | Solder | Series | Easy-On 51296 |
| Pitch | 0.020" (0.50mm) | Packaging | Original-Reel® |
| Other Names | WM11238DKR | Operating Temperature | -40°C ~ 85°C |
| Number of Positions | 45 | Mounting Type | Surface Mount, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Cycles | 20 |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 22 Weeks |
| Locking Feature | Flip Lock | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Housing Material | Liquid Crystal Polymer (LCP), Glass Filled | Housing Color | Beige |
| Height Above Board | 0.051" (1.30mm) | Flat Flex Type | FFC, FPC |
| Features | Solder Retention, Zero Insertion Force (ZIF) | FFC, FCB Thickness | 0.30mm |
| Detailed Description | 45 Position FFC, FPC Connector Contacts, Bottom 0.020" (0.50mm) Surface Mount, Right Angle | Current Rating | 0.5A |
| Contact Material | Phosphor Bronze | Contact Finish Thickness | 39.4µin (1.00µm) |
| Contact Finish | Tin Bismuth | Connector/Contact Type | Contacts, Bottom |
| Cable End Type | Straight, Tapered | Actuator Material | Polyamide (PA), Nylon, Glass Filled |
| Actuator Color | Black |
