0472720024

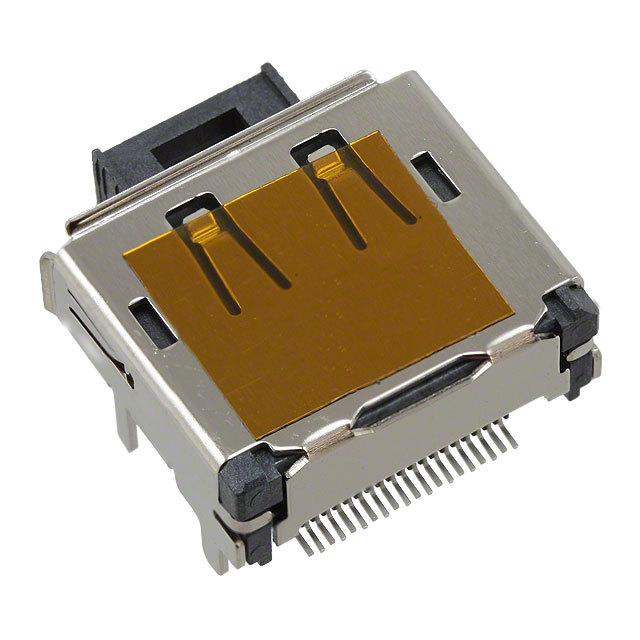

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 0472720024 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 0472720024 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 0472720024 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | CONN RCPT DISPLAYPORT 20POS R/A |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 250 pcs | 500 pcs | 750 pcs | ||
|---|---|---|---|---|---|
| $1.042 | $1.012 | $0.923 | |||
| 1250 pcs | 1750 pcs | 2500 pcs | |||
| $0.863 | $0.834 | $0.804 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 0472720024 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | CONN RCPT DISPLAYPORT 20POS R/A | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 42058 pcs | Data sheet | 472720024 |
| Category | Connectors, Interconnects | Voltage - Rated | 40VAC |
| Termination | Solder | Specifications | - |
| Shielding | Shielded | Shell/Shielding Material | Steel, Stainless |
| Series | 47272 | Packaging | Tape & Reel (TR) |
| Other Names | 47272-0024 472720024 WM3971TR |
Operating Temperature | -20°C ~ 85°C |
| Number of Ports | 1 | Number of Contacts | 20 |
| Mounting Type | Surface Mount, Right Angle; Through Hole | Mounting Feature | Horizontal |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Cycles | 10000 |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 18 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Color | Black |
| Ingress Protection | - | Gender | Receptacle |
| Features | Board Guide, Cover, Latch Lock | Detailed Description | DisplayPort Receptacle Connector 20 Position Surface Mount, Right Angle; Through Hole |
| Current Rating | 0.5A | Contact Finish | Gold |
| Connector Type | DisplayPort |
