0472720001

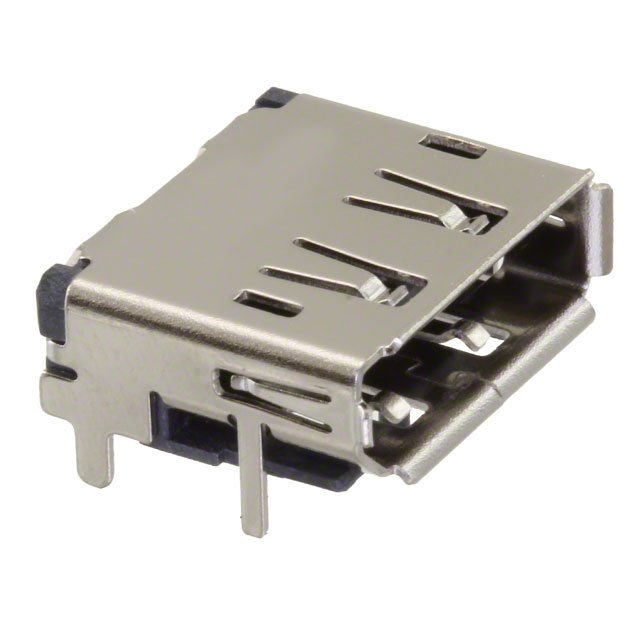

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 0472720001 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 0472720001 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 0472720001 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | CONN RCPT 20POS UDI R/A SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $1.493 | $1.433 | $1.314 | $1.254 | $1.194 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | 0472720001 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | CONN RCPT 20POS UDI R/A SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 29715 pcs | Data sheet | 47272-0001 |
| Category | Connectors, Interconnects | Voltage - Rated | 40VAC |
| Termination | Solder | Specifications | - |
| Shielding | Shielded | Shell/Shielding Material | Steel, Stainless |
| Series | 47272 | Packaging | Cut Tape (CT) |
| Other Names | WM19271 WM19271-ND WM19271CT |
Operating Temperature | -20°C ~ 85°C |
| Number of Ports | 1 | Number of Contacts | 20 |
| Mounting Type | Surface Mount, Right Angle; Through Hole | Mounting Feature | Horizontal |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Cycles | 10000 |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 11 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Color | Black |
| Ingress Protection | - | Gender | Receptacle |
| Features | Board Guide, Latch Lock | Detailed Description | DisplayPort Receptacle Connector 20 Position Surface Mount, Right Angle; Through Hole |
| Current Rating | 0.5A | Contact Finish | Gold |
| Connector Type | DisplayPort |
