0436500427

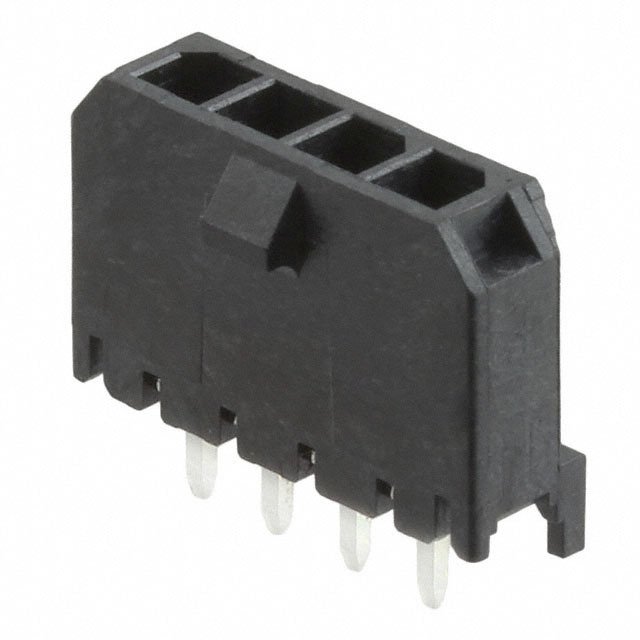

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 0436500427 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 0436500427 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 0436500427 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | MICROFIT 3.0 SR VERT TH PEG TIN |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | |
|---|---|---|---|---|---|
| $0.396 | $0.347 | $0.299 | $0.245 | ||
| 2040 pcs | 6120 pcs | 10200 pcs | |||
| $0.204 | $0.19 | $0.181 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 0436500427 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | MICROFIT 3.0 SR VERT TH PEG TIN | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 123267 pcs | Data sheet | 0436500427 Drawing43650 Prod Spec43650, 43655 Series Pkg DrawingMicro-Fit 3.0™ Datasheet |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | Micro-Fit 3.0 43650 |
| Row Spacing - Mating | - | Pitch - Mating | 0.118" (3.00mm) |
| Packaging | Tray | Overall Contact Length | - |
| Other Names | 0436-50-0427 043650-0427 0436500427-ND 43650-0427 436500427 WM10663 |
Operating Temperature | - |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 4 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | 17.56mm | Manufacturer Standard Lead Time | 7 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Liquid Crystal Polymer (LCP), Glass Filled |
| Insulation Height | 0.390" (9.91mm) | Insulation Color | Black |
| Ingress Protection | - | Features | Board Guide |
| Fastening Type | Locking Ramp | Detailed Description | Connector Header Through Hole 4 position 0.118" (3.00mm) |
| Current Rating | - | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Brass |
| Contact Length - Post | 0.125" (3.18mm) | Contact Length - Mating | - |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | 100.0µin (2.54µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
| Connector Type | Header | Applications | General Purpose, Medical, Military, Telecommunications |
