0436500420
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 0436500420 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 0436500420 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 0436500420 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | MICROFIT 3.0 SR VERT TH CLIP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | |
|---|---|---|---|---|---|
| $0.634 | $0.577 | $0.494 | $0.412 | ||
| 2040 pcs | 6120 pcs | 10200 pcs | |||
| $0.341 | $0.313 | $0.306 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 0436500420 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | MICROFIT 3.0 SR VERT TH CLIP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 64378 pcs | Data sheet | 0436500420 Drawing43650 Prod Spec43650, 43655 Series Pkg DrawingMicro-Fit 3.0™ Datasheet |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Kinked Pin, Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | Micro-Fit 3.0 43650 |
| Row Spacing - Mating | - | Pitch - Mating | 0.118" (3.00mm) |
| Packaging | Tray | Overall Contact Length | - |
| Other Names | 0436-50-0420 043650-0420 0436500420-ND 43650-0420 436500420 WM20159 |
Operating Temperature | - |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 4 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | 17.56mm | Manufacturer Standard Lead Time | 8 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Liquid Crystal Polymer (LCP), Glass Filled |
| Insulation Height | 0.390" (9.91mm) | Insulation Color | Black |
| Ingress Protection | - | Features | Board Lock |
| Fastening Type | Locking Ramp | Detailed Description | Connector Header Through Hole 4 position 0.118" (3.00mm) |
| Current Rating | - | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Brass |
| Contact Length - Post | 0.125" (3.18mm) | Contact Length - Mating | - |
| Contact Finish Thickness - Post | 100.0µin (2.54µm) | Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Gold |
| Connector Type | Header | Applications | General Purpose, Medical, Military, Telecommunications |
- Related products
- Related news
Related products
- Part#:
0436500423 - Manufacturers:
Affinity Medical Technologies - a Molex company - Description:
MICROFIT 3.0 VERT SMT 4CKT GOLD - In Stock:
54203
- Part#:
0436500418 - Manufacturers:
Affinity Medical Technologies - a Molex company - Description:

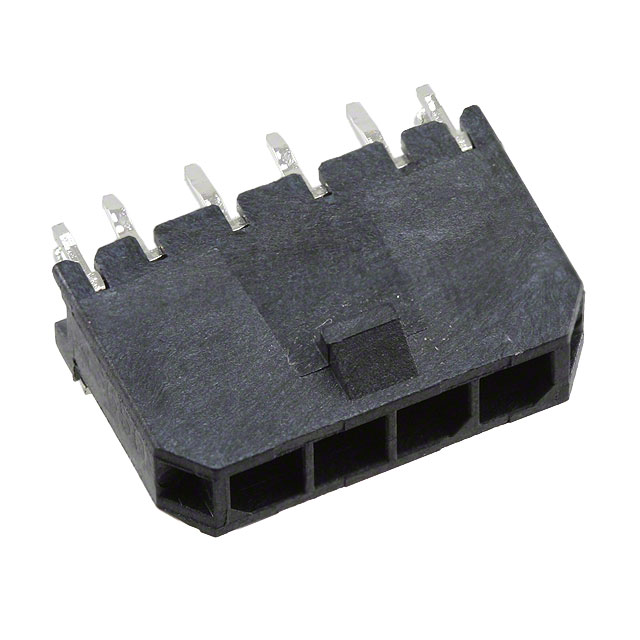

HEADER VERT TH CLIP TIN 4CKT - In Stock:
