0428194214

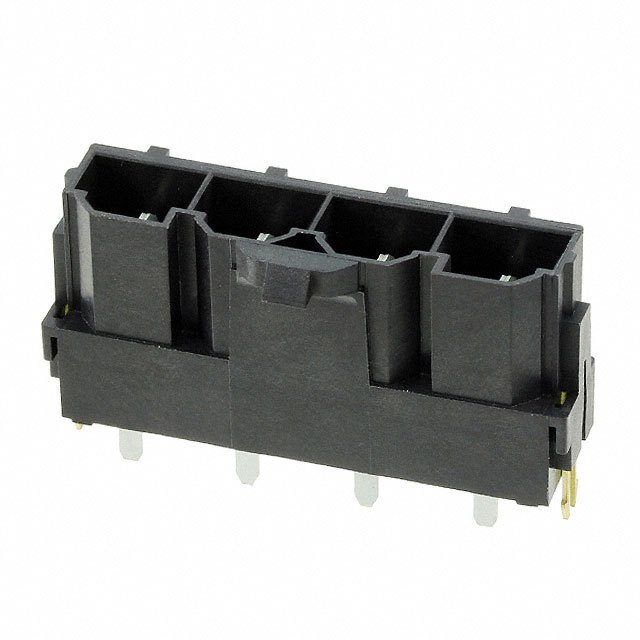

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 0428194214 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 0428194214 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 0428194214 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | MF SR VT HDR ASSY 062 CP 4CKT SI |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | 1008 pcs |
|---|---|---|---|---|---|
| $1.543 | $1.482 | $1.235 | $1.05 | $0.895 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | 0428194214 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | MF SR VT HDR ASSY 062 CP 4CKT SI | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 42973 pcs | Data sheet | 42815-001 Series Prod Spec0428194214 DrawingMini-Fit Sr.™ Conn Datasheet |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | Mini-Fit Sr 42819 |
| Row Spacing - Mating | - | Pitch - Mating | 0.394" (10.00mm) |
| Packaging | Tray | Overall Contact Length | - |
| Other Names | 0428194214-ND 428194214 WM11910 |
Operating Temperature | - |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 4 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 7 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyamide (PA46), Nylon 4/6, Glass Filled |
| Insulation Height | 0.827" (21.00mm) | Insulation Color | Black |
| Ingress Protection | - | Features | Board Lock |
| Fastening Type | Locking Ramp | Detailed Description | Connector Header Through Hole 4 position 0.394" (10.00mm) |
| Current Rating | - | Contact Type | Male Blade |
| Contact Shape | Rectangular | Contact Material | Copper Zirconium Alloy |
| Contact Length - Post | 0.138" (3.50mm) | Contact Length - Mating | - |
| Contact Finish Thickness - Post | 100.0µin (2.54µm) | Contact Finish Thickness - Mating | 100.0µin (2.54µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Silver |
| Connector Type | Header | Applications | Automotive, General Purpose, Industrial, Medical, Telecommunications |
