0428193223

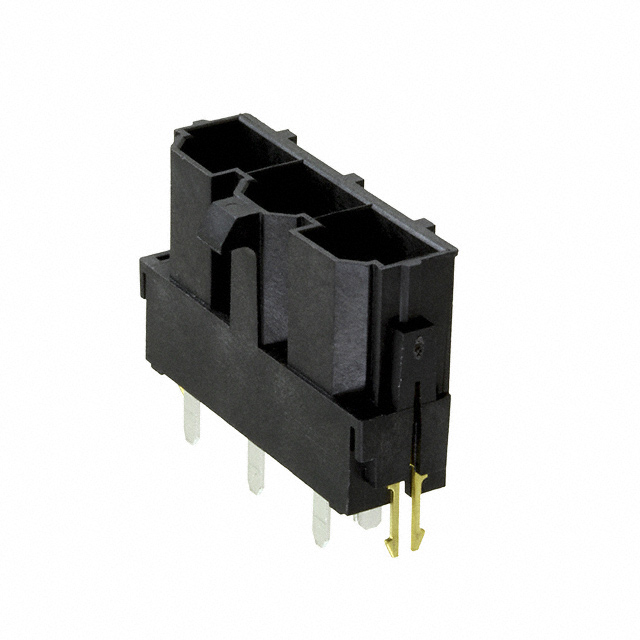

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 0428193223 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 0428193223 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 0428193223 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | MINIFIT SR HDR VERT 093 CLIP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 324 pcs | 648 pcs | 1296 pcs |
|---|---|---|---|---|---|
| $2.505 | $2.402 | $1.775 | $1.671 | $1.462 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | 0428193223 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | MINIFIT SR HDR VERT 093 CLIP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 21056 pcs | Data sheet | 42815-001 Series Prod Spec0428193223 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | Mini-Fit Sr 42819 |
| Row Spacing - Mating | - | Pitch - Mating | 0.394" (10.00mm) |
| Packaging | Tray | Overall Contact Length | - |
| Other Names | 0428-19-3223 042819-3223 0428193223-ND 42819-3223 428193223 WM12915 |
Operating Temperature | - |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 3 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 8 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyamide (PA46), Nylon 4/6, Glass Filled |
| Insulation Height | 0.827" (21.00mm) | Insulation Color | Black |
| Ingress Protection | - | Features | Board Lock |
| Fastening Type | Locking Ramp | Detailed Description | Connector Header Through Hole 3 position 0.394" (10.00mm) |
| Current Rating | - | Contact Type | Male Blade |
| Contact Shape | Rectangular | Contact Material | Copper Zirconium Alloy |
| Contact Length - Post | 0.201" (5.11mm) | Contact Length - Mating | - |
| Contact Finish Thickness - Post | 100.0µin (2.54µm) | Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Gold |
| Connector Type | Header | Applications | Automotive, General Purpose, Industrial, Medical, Telecommunications |
