0348302001

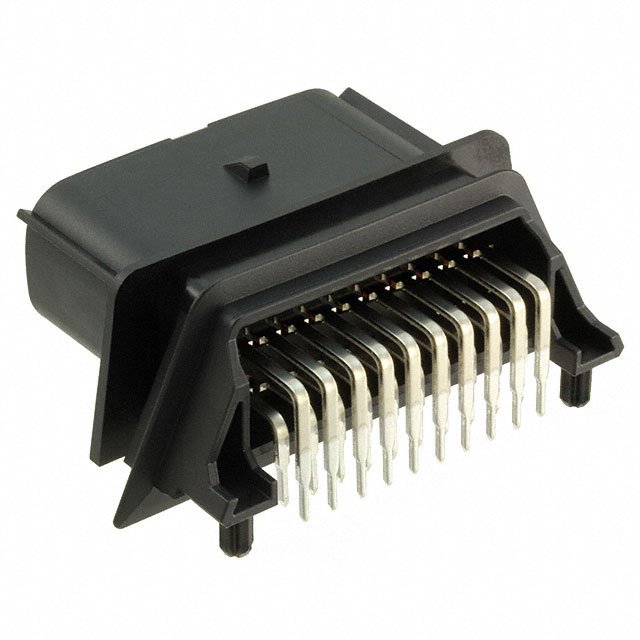

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 0348302001 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 0348302001 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 0348302001 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | MX150 RA HDR 2X10 ST BLK KEY A |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $2.606 | $2.498 | $2.281 | $2.172 | ||
| 100 pcs | 300 pcs | 600 pcs | 1200 pcs | ||
| $2.064 | $1.846 | $1.738 | $1.521 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 0348302001 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | MX150 RA HDR 2X10 ST BLK KEY A | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 22178 pcs | Data sheet | 34829, 34830 Drawing34829-001 Appl Spec34829-001 Prod Spec34830-001 Pkg Spec |
| Category | Connectors, Interconnects | Voltage Rating | 14VDC |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | MX150 34830 |
| Row Spacing - Mating | 0.138" (3.50mm) | Pitch - Mating | 0.138" (3.50mm) |
| Packaging | Tray | Overall Contact Length | - |
| Other Names | 034830-2001 0348302001-ND 34830-2001 348302001 WM12752 |
Operating Temperature | -40°C ~ 125°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 20 | Mounting Type | Through Hole, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | - |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 11 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Insulation Height | 0.996" (25.29mm) | Insulation Color | Black |
| Ingress Protection | IP67/69K - Dust Tight, Water Resistant, Waterproof | Features | Board Guide |
| Fastening Type | Locking Ramp | Detailed Description | Connector Header Through Hole, Right Angle 20 position 0.138" (3.50mm) |
| Current Rating | - | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Copper Alloy |
| Contact Length - Post | - | Contact Length - Mating | - |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
| Connector Type | Header | Applications | Automotive |
