0348300801

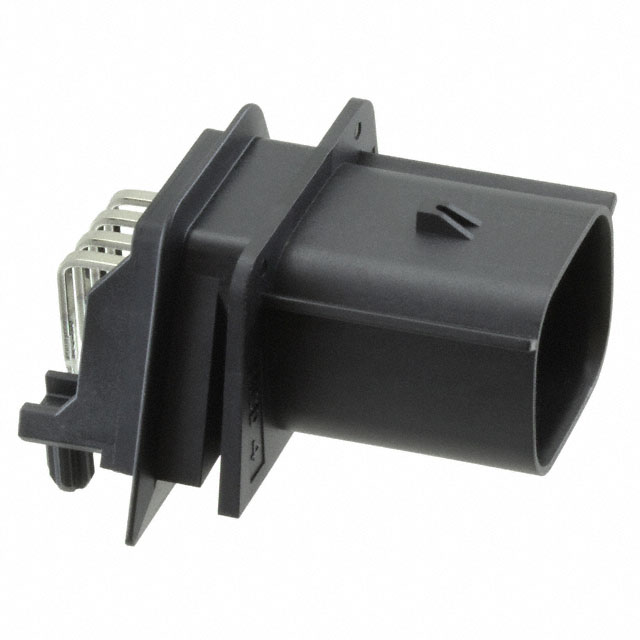

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 0348300801 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 0348300801 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 0348300801 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | MX150 RA HDR 2X4 ST BLK KEY A |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $1.671 | $1.606 | $1.472 | $1.405 | $1.338 | |
| 420 pcs | 840 pcs | 1260 pcs | 2520 pcs | ||
| $1.171 | $1.037 | $0.97 | $0.903 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 0348300801 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | MX150 RA HDR 2X4 ST BLK KEY A | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 41156 pcs | Data sheet | 34830-080x Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 14VDC |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | MX150 34830 |
| Row Spacing - Mating | 0.138" (3.50mm) | Pitch - Mating | 0.138" (3.50mm) |
| Packaging | Tray | Overall Contact Length | - |
| Other Names | 034830-0801 0348300801-ND 34830-0801 348300801 WM14555 |
Operating Temperature | -40°C ~ 125°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 8 | Mounting Type | Through Hole, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | - |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 13 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Insulation Height | 1.014" (25.75mm) | Insulation Color | Black |
| Ingress Protection | IP67/69K - Dust Tight, Water Resistant, Waterproof | Features | Board Guide |
| Fastening Type | Locking Ramp | Detailed Description | Connector Header Through Hole, Right Angle 8 position 0.138" (3.50mm) |
| Current Rating | - | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Copper Alloy |
| Contact Length - Post | - | Contact Length - Mating | - |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
| Connector Type | Header | Applications | Automotive |
