0313862002

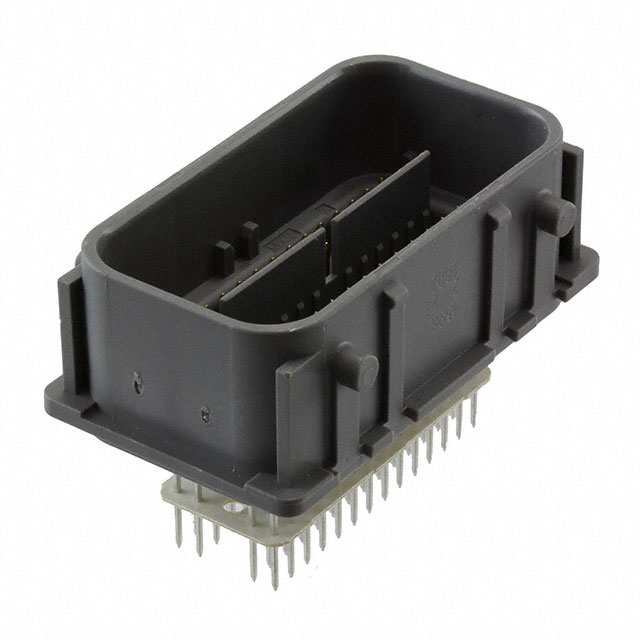

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 0313862002 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 0313862002 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 0313862002 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | MX123 56CKT GRAY H SHRD ASSY 313 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | |
|---|---|---|---|---|---|
| $6.222 | $5.779 | $4.445 | $4.06 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 0313862002 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | MX123 56CKT GRAY H SHRD ASSY 313 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 9002 pcs | Data sheet | 0313862002 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | MX123 31386 |
| Row Spacing - Mating | - | Pitch - Mating | 0.100" (2.54mm) |
| Packaging | Bulk | Overall Contact Length | - |
| Other Names | 031386-2002 0313862002-ND 31386-2002 313862002 WM19955 |
Operating Temperature | - |
| Number of Rows | 4 | Number of Positions Loaded | All |
| Number of Positions | 56 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | Not Applicable | Material Flammability Rating | - |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 5 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Insulation Height | 0.848" (21.54mm) | Insulation Color | Gray |
| Ingress Protection | - | Features | - |
| Fastening Type | Push-Pull | Detailed Description | Connector Header Through Hole 56 position 0.100" (2.54mm) |
| Current Rating | - | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | - |
| Contact Length - Post | 0.256" (6.50mm) | Contact Length - Mating | - |
| Contact Finish Thickness - Post | 200.0µin (5.08µm) | Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Gold |
| Connector Type | Header | Applications | Automotive |
