0313862001

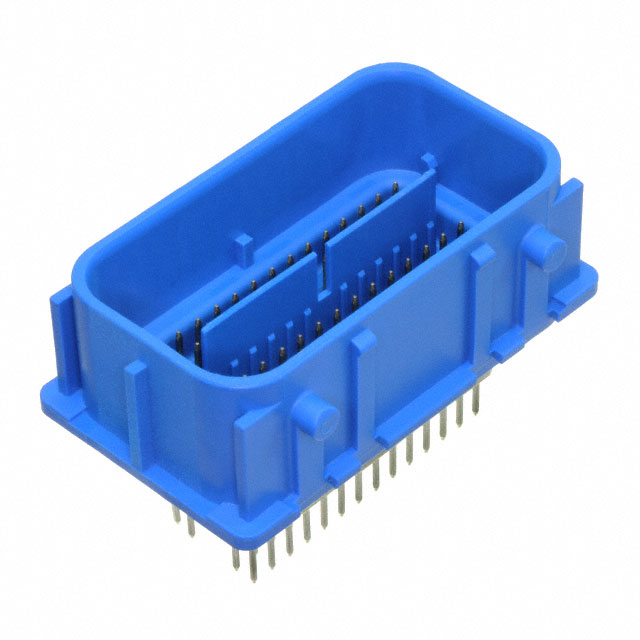

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 0313862001 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 0313862001 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 0313862001 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | MX123 56CKT BLUE G SHRD ASSY |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | |
|---|---|---|---|---|---|
| $6.188 | $5.747 | $4.42 | $4.037 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 0313862001 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | MX123 56CKT BLUE G SHRD ASSY | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 8197 pcs | Data sheet | 313862001 Drawing31301-916 Pkg Spec31386-200-001 Prod SpecMX123 Header Appl Spec34566-0000 Prod SpecMX123™ Series User Manual |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | MX123 31386 |
| Row Spacing - Mating | - | Pitch - Mating | 0.100" (2.54mm) |
| Packaging | Bulk | Overall Contact Length | - |
| Other Names | 031386-2001 0313862001-ND 31386-2001 313862001 WM17276 |
Operating Temperature | - |
| Number of Rows | 4 | Number of Positions Loaded | All |
| Number of Positions | 56 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | - |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 5 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Insulation Height | 0.848" (21.54mm) | Insulation Color | Blue |
| Ingress Protection | - | Features | - |
| Fastening Type | Push-Pull | Detailed Description | Connector Header Through Hole 56 position 0.100" (2.54mm) |
| Current Rating | - | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | - |
| Contact Length - Post | 0.256" (6.50mm) | Contact Length - Mating | - |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | - |
| Contact Finish - Post | - | Contact Finish - Mating | Gold |
| Connector Type | Header | Applications | Automotive |
