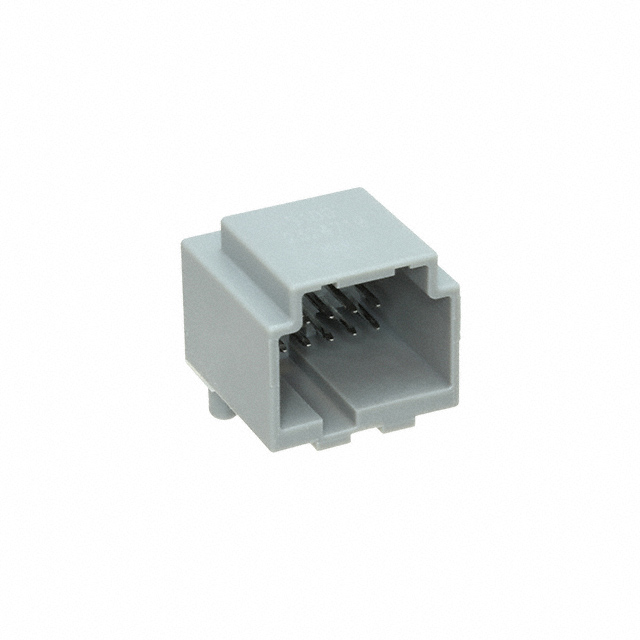

0307005100
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 0307005100 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 0307005100 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 0307005100 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | CONN HEADER 10POS R/A DL GRAY |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | ||
|---|---|---|---|---|---|
| $0.709 | $0.643 | $0.551 | |||
| 500 pcs | 1638 pcs | 6552 pcs | |||
| $0.459 | $0.381 | $0.349 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 0307005100 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | CONN HEADER 10POS R/A DL GRAY | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 66897 pcs | Data sheet | 307005100 |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | H-DAC 64 30700 |
| Row Spacing - Mating | 0.100" (2.54mm) | Pitch - Mating | 0.100" (2.54mm) |
| Packaging | Tray | Overall Contact Length | - |
| Other Names | 030700-5100 0307005100-ND 30700-5100 307005-5100 307005100 WM19942 |
Operating Temperature | - |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 10 | Mounting Type | Through Hole, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | - |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 7 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Syndiotactic Polystyrene (SPS), Glass Filled |
| Insulation Height | 0.734" (18.64mm) | Insulation Color | Gray |
| Ingress Protection | - | Features | Board Guide |
| Fastening Type | Latch Holder | Detailed Description | Connector Header Through Hole, Right Angle 10 position 0.100" (2.54mm) |
| Current Rating | - | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Copper Alloy |
| Contact Length - Post | 0.131" (3.33mm) | Contact Length - Mating | 0.311" (7.90mm) |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
| Connector Type | Header | Applications | Automotive |
