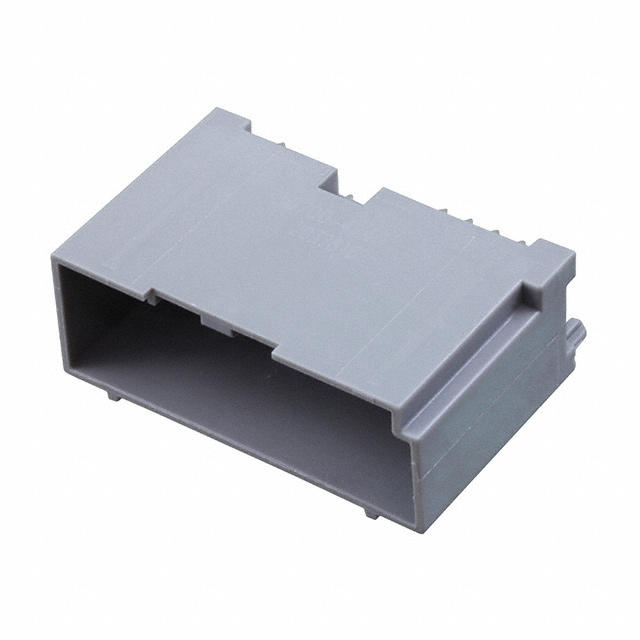

0307004240
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 0307004240 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 0307004240 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 0307004240 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | CONN HEADER VERT 24POS DL GRAY |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 252 pcs | 504 pcs | 1008 pcs |
|---|---|---|---|---|---|
| $1.607 | $1.543 | $1.125 | $1.093 | $0.932 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | 0307004240 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | CONN HEADER VERT 24POS DL GRAY | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 42167 pcs | Data sheet | 307004240 |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | H-DAC 64 30700 |
| Row Spacing - Mating | - | Pitch - Mating | - |
| Packaging | Tray | Overall Contact Length | - |
| Other Names | 030700-4240 0307004240-ND 30700-4240 307004-4240 307004240 WM19940 |
Operating Temperature | - |
| Number of Rows | 3 | Number of Positions Loaded | All |
| Number of Positions | 24 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | - |
| Mated Stacking Heights | 37.33mm | Manufacturer Standard Lead Time | 7 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Syndiotactic Polystyrene (SPS), Glass Filled |
| Insulation Height | 1.240" (31.50mm) | Insulation Color | Gray |
| Ingress Protection | - | Features | Board Guide |
| Fastening Type | Latch Holder | Detailed Description | Connector Header Through Hole 24 position |
| Current Rating | - | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Copper Alloy |
| Contact Length - Post | 0.145" (3.68mm) | Contact Length - Mating | - |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
| Connector Type | Header | Applications | Automotive |
