0191310036

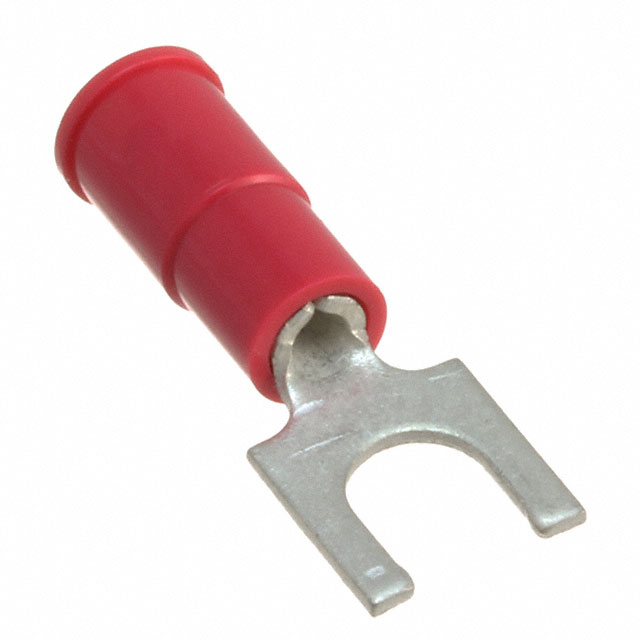

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 0191310036 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 0191310036 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 0191310036 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | CONN SPADE TERM 18-22AWG #8 RED |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.082 | $0.076 | $0.065 | $0.057 | $0.053 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $0.047 | $0.045 | $0.036 | $0.033 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 0191310036 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | CONN SPADE TERM 18-22AWG #8 RED | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 752195 pcs | Data sheet | 191310036 Drawings0191310036Insulkrimp Rings, Spades Prod Spec |
| Category | Connectors, Interconnects | Wire Gauge | 18-22 AWG |
| Width - Outer Edges | 0.291" (7.39mm) | Tongue Inside Opening | 0.173" (4.39mm) |
| Termination | Crimp | Terminal Type | Standard |
| Stud/Tab Size | 8 Stud | Series | InsulKrimp |
| Packaging | Bulk | Other Names | 019131-0036 0191310036-ND 19131-0036 191310036 AA-234-08X WM13773 |
| Mounting Type | Free Hanging (In-Line) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material - Insulation | Poly-Vinyl Chloride (PVC) | Manufacturer Standard Lead Time | 4 Weeks |
| Length - Termination | 0.405" (10.29mm) | Length - Ring Center to Termination | 0.207" (5.26mm) |
| Length - Overall | 0.785" (19.94mm) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Diameter | 0.145" (3.68mm) | Insulation | Insulated |
| Features | - | Detailed Description | Red 8 Stud Spade Terminal Connector Crimp 18-22 AWG |
| Contact Material | Copper | Contact Finish | Electro-Tin |
| Color | Red |
