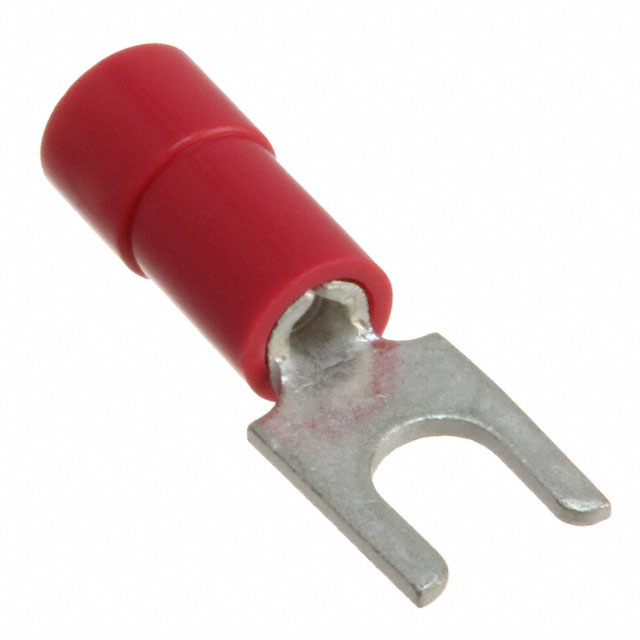

0191310030
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 0191310030 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 0191310030 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 0191310030 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | CONN SPADE TERM 18-22AWG #6 RED |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1500 pcs | 3000 pcs | 7500 pcs | 10500 pcs | |
|---|---|---|---|---|---|
| $0.058 | $0.056 | $0.053 | $0.049 | ||
| 15000 pcs | 37500 pcs | 75000 pcs | |||
| $0.048 | $0.047 | $0.046 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 0191310030 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | CONN SPADE TERM 18-22AWG #6 RED | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 419550 pcs | Data sheet | 0191310030Insulkrimp Rings, Spades Prod Spec191310030 Drawings |
| Category | Connectors, Interconnects | Wire Gauge | 18-22 AWG |
| Width - Outer Edges | 0.245" (6.22mm) | Tongue Inside Opening | 0.146" (3.71mm) |
| Termination | Crimp | Terminal Type | Standard |
| Stud/Tab Size | 6 Stud | Series | InsulKrimp |
| Packaging | Tape & Reel (TR) | Other Names | 019131-0030 0191310030-ND 19131-0030 191310030 AA-238-06XT WM14244TR |
| Mounting Type | Free Hanging (In-Line) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material - Insulation | Poly-Vinyl Chloride (PVC) | Manufacturer Standard Lead Time | 5 Weeks |
| Length - Termination | 0.405" (10.29mm) | Length - Ring Center to Termination | 0.207" (5.26mm) |
| Length - Overall | 0.785" (19.94mm) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Diameter | 0.145" (3.68mm) | Insulation | Insulated |
| Features | - | Detailed Description | Red 6 Stud Spade Terminal Connector Crimp 18-22 AWG |
| Contact Material | Copper | Contact Finish | Electro-Tin |
| Color | Red |
