0050362462

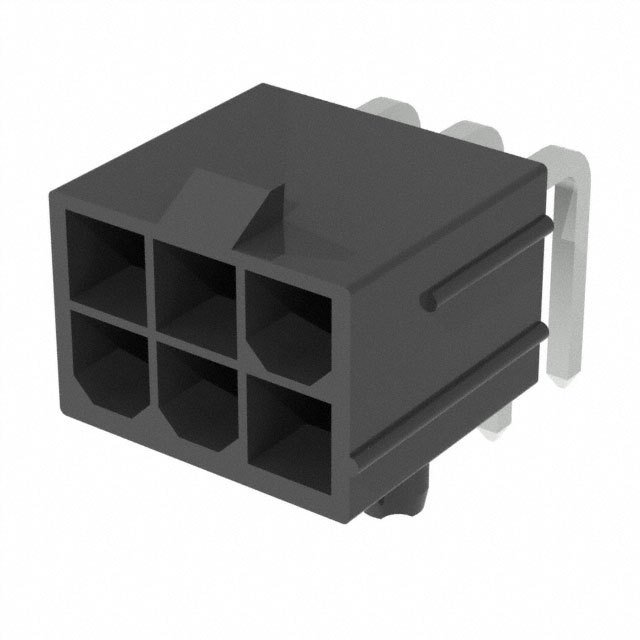

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 0050362462 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 0050362462 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 0050362462 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | MINIFIT JR RA HDR ASSY LCP 6 W/P |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 920 pcs | |
|---|---|---|---|---|---|
| $0.374 | $0.329 | $0.284 | $0.226 | ||
| 1840 pcs | 5520 pcs | 10120 pcs | |||
| $0.193 | $0.18 | $0.171 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 0050362462 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | MINIFIT JR RA HDR ASSY LCP 6 W/P | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 136113 pcs | Data sheet | PK-5569-002 Pkg Spec0050362462 Drawing5556-001 Prod Spec |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | Mini-Fit Jr 5569 |
| Row Spacing - Mating | 0.165" (4.20mm) | Pitch - Mating | 0.165" (4.20mm) |
| Packaging | Tray | Overall Contact Length | - |
| Other Names | 0050-36-2462 0050362462-ND 050-36-2462 50-36-2462 5036-2462 50362462 5569-06A7MS-130-T WM14529 |
Operating Temperature | - |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 6 | Mounting Type | Through Hole, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 8 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Liquid Crystal Polymer (LCP), Glass Filled |
| Insulation Height | 0.378" (9.60mm) | Insulation Color | Black |
| Ingress Protection | - | Features | Board Lock |
| Fastening Type | Locking Ramp | Detailed Description | Connector Header Through Hole, Right Angle 6 position 0.165" (4.20mm) |
| Current Rating | - | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Brass |
| Contact Length - Post | 0.142" (3.60mm) | Contact Length - Mating | - |
| Contact Finish Thickness - Post | 100.0µin (2.54µm) | Contact Finish Thickness - Mating | 100.0µin (2.54µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
| Connector Type | Header | Applications | General Purpose, Industrial, Telecommunications |
