0050362426
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 0050362426 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 0050362426 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 0050362426 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |

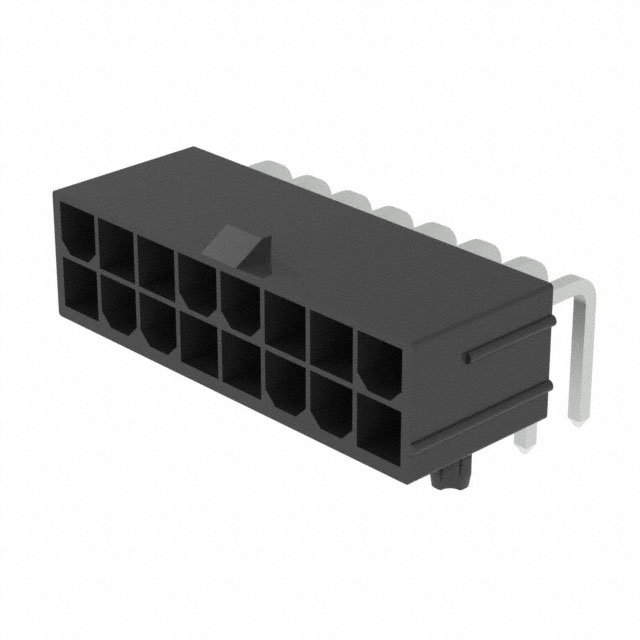

| Description | MINIFIT JR RA HDR ASSY LCP 16W/P |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | ||
|---|---|---|---|---|---|
| $0.849 | $0.77 | $0.66 | |||
| 500 pcs | 1440 pcs | 5760 pcs | |||
| $0.55 | $0.471 | $0.418 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 0050362426 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | MINIFIT JR RA HDR ASSY LCP 16W/P | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 76891 pcs | Data sheet | 0050362426 DrawingPK-5569-002 Pkg Spec5556-001 Prod Spec |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | Mini-Fit Jr 5569 |
| Row Spacing - Mating | 0.165" (4.20mm) | Pitch - Mating | 0.165" (4.20mm) |
| Packaging | Tray | Overall Contact Length | - |
| Other Names | 0050-36-2426 0050362426-ND 050-36-2426 50-36-2426 5036-2426 50362426 5569-16A7MS-130-T WM19569 |
Operating Temperature | - |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 16 | Mounting Type | Through Hole, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 8 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Liquid Crystal Polymer (LCP), Glass Filled |
| Insulation Height | 0.378" (9.60mm) | Insulation Color | Black |
| Ingress Protection | - | Features | Board Lock |
| Fastening Type | Locking Ramp | Detailed Description | Connector Header Through Hole, Right Angle 16 position 0.165" (4.20mm) |
| Current Rating | - | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Brass |
| Contact Length - Post | 0.142" (3.60mm) | Contact Length - Mating | - |
| Contact Finish Thickness - Post | 100.0µin (2.54µm) | Contact Finish Thickness - Mating | 100.0µin (2.54µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
| Connector Type | Header | Applications | General Purpose, Industrial, Telecommunications |
