0038006865

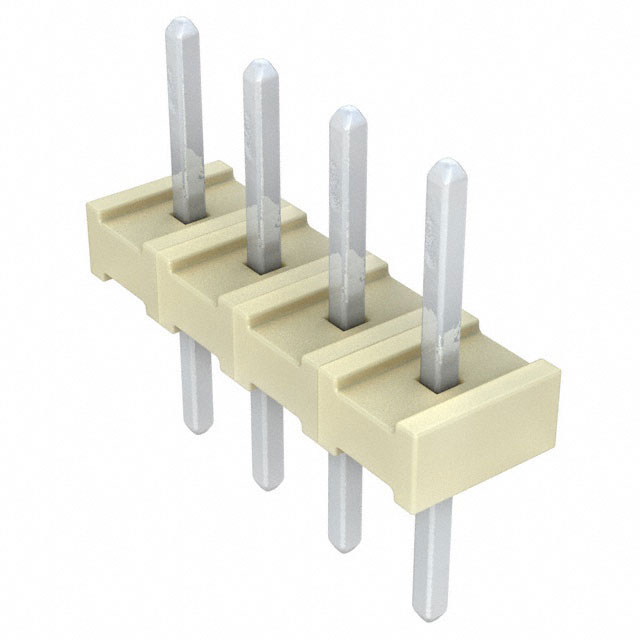

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 0038006865 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 0038006865 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 0038006865 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | 5.08MM KK HDR SQPIN VRA VD2 4POS |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 9000 pcs | ||||
|---|---|---|---|---|---|
| $0.081 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 0038006865 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | 5.08MM KK HDR SQPIN VRA VD2 4POS | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 237714 pcs | Data sheet | 0038006865 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Board or Cable |
| Shrouding | Unshrouded | Series | KK 3003 |
| Row Spacing - Mating | - | Pitch - Mating | 0.200" (5.08mm) |
| Packaging | Bulk | Overall Contact Length | 0.750" (19.05mm) |
| Other Names | 0038-00-6865 003800-6865 300304A02 38-00-6865 38006865 |
Operating Temperature | - |
| Number of Rows | 1 | Number of Positions Loaded | 3 |
| Number of Positions | 4 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-2 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 30 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyamide (PA), Nylon |
| Insulation Height | 0.125" (3.18mm) | Insulation Color | Natural |
| Ingress Protection | - | Features | - |
| Fastening Type | Push-Pull | Detailed Description | Connector Header Through Hole 4 position 0.200" (5.08mm) |
| Current Rating | - | Contact Type | Male Pin |
| Contact Shape | Circular | Contact Material | Brass |
| Contact Length - Post | 0.155" (3.94mm) | Contact Length - Mating | 0.470" (11.94mm) |
| Contact Finish Thickness - Post | 100.0µin (2.54µm) | Contact Finish Thickness - Mating | 100.0µin (2.54µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
| Connector Type | Header | Applications | General Purpose, Industrial, Telecommunications |
