0038006294

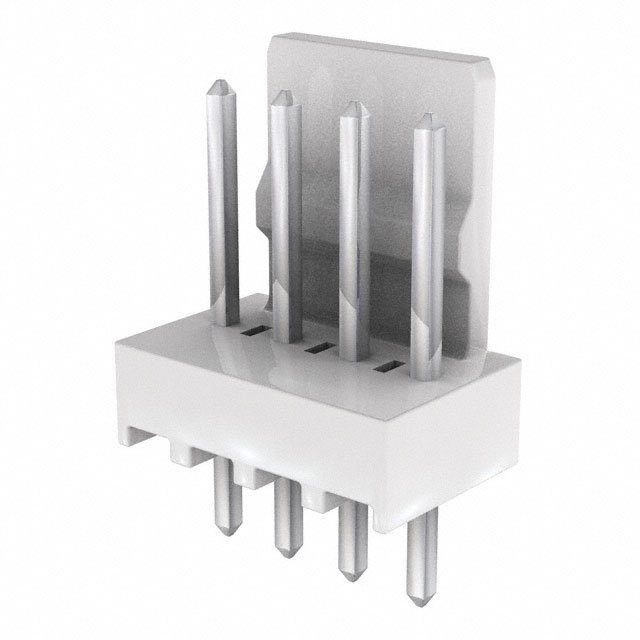

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 0038006294 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 0038006294 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 0038006294 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | WAFER ASSY FR/LK .100IN |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 12000 pcs | ||||
|---|---|---|---|---|---|
| $0.052 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 0038006294 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | WAFER ASSY FR/LK .100IN | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 369467 pcs | Data sheet | 0038006294 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 1 Wall | Series | KK 6410 |
| Row Spacing - Mating | - | Pitch - Mating | 0.100" (2.54mm) |
| Packaging | Bulk | Overall Contact Length | 0.800" (20.32mm) |
| Other Names | 0038-00-6294 003800-6294 38-00-6294 38006294 AE-6410-04C(197) |
Operating Temperature | - |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 4 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 9 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyamide (PA), Nylon |
| Insulation Height | 0.461" (11.70mm) | Insulation Color | Natural |
| Ingress Protection | - | Features | - |
| Fastening Type | Friction Lock | Detailed Description | Connector Header Through Hole 4 position 0.100" (2.54mm) |
| Current Rating | - | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Brass |
| Contact Length - Post | 0.394" (10.00mm) | Contact Length - Mating | 0.281" (7.15mm) |
| Contact Finish Thickness - Post | 60.0µin (1.52µm) | Contact Finish Thickness - Mating | 60.0µin (1.52µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
| Connector Type | Header | Applications | Automotive, General Purpose, Medical, Telecommunications |
