0026482033

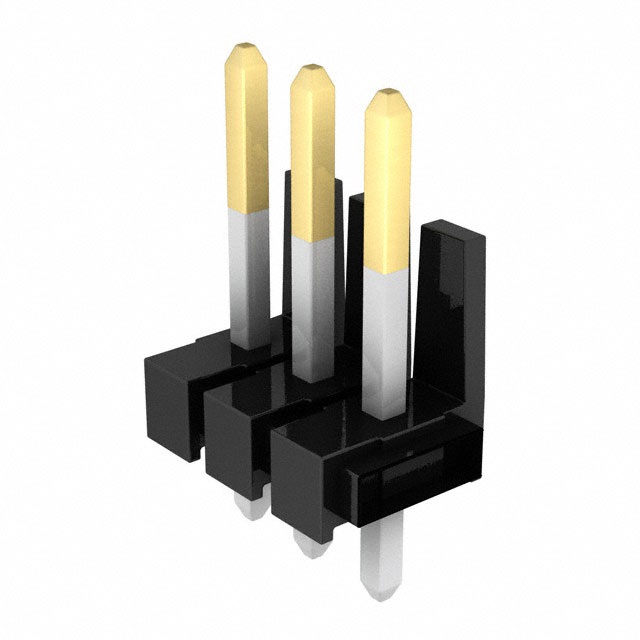

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 0026482033 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 0026482033 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 0026482033 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | CONN BKWY HEADER 3POS STR GOLD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $0.304 | $0.267 | $0.251 | $0.241 | ||
| 100 pcs | 250 pcs | 500 pcs | |||
| $0.231 | $0.21 | $0.189 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 0026482033 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | CONN BKWY HEADER 3POS STR GOLD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 120060 pcs | Data sheet | 08-50 Prod Spec0026482033 Drawing~ |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Board or Cable |
| Shrouding | Shrouded - 1 Wall | Series | KK 41681 |
| Row Spacing - Mating | - | Pitch - Mating | 0.156" (3.96mm) |
| Packaging | Bulk | Overall Contact Length | 0.750" (19.05mm) |
| Other Names | 0026-48-2033 002648-2033 0026482033-ND 26-48-2033 26482033 WM50005-03 WM50005-2033 WM50005-2033-ND |
Operating Temperature | - |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 3 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Polyester, Glass Filled | Insulation Height | 0.360" (9.14mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | - | Fastening Type | Push-Pull |
| Detailed Description | Connector Header Through Hole 3 position 0.156" (3.96mm) | Current Rating | - |
| Contact Type | Male Pin | Contact Shape | Square |
| Contact Material | Brass | Contact Length - Post | 0.172" (4.37mm) |
| Contact Length - Mating | 0.450" (11.43mm) | Contact Finish Thickness - Post | 100.0µin (2.54µm) |
| Contact Finish Thickness - Mating | 20.0µin (0.51µm) | Contact Finish - Post | Tin |
| Contact Finish - Mating | Gold | Connector Type | Header, Breakaway |
| Applications | Automotive, General Purpose, Industrial, Medical, Telecommunications |
