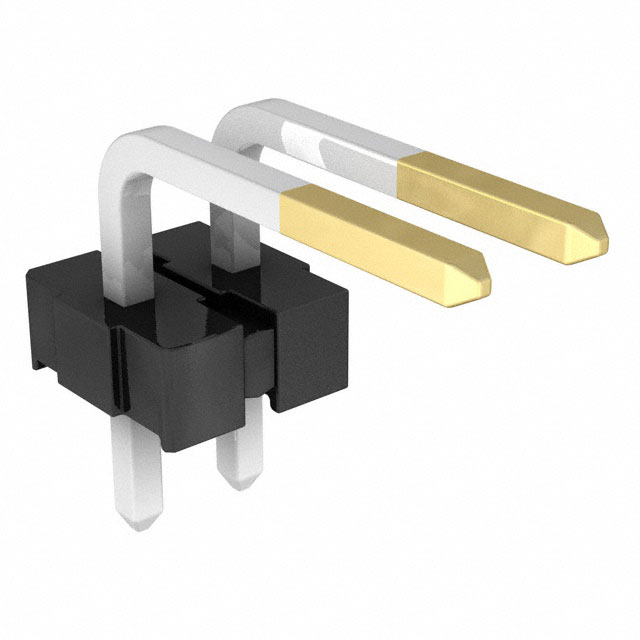

0026482022
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 0026482022 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 0026482022 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 0026482022 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | CONN HEADER 2POS .156 R/A GOLD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $0.247 | $0.233 | $0.21 | $0.186 | ||
| 100 pcs | 250 pcs | 500 pcs | |||
| $0.179 | $0.163 | $0.155 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 0026482022 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | CONN HEADER 2POS .156 R/A GOLD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 128478 pcs | Data sheet | 08-50 Prod Spec41662 Series Specs26-48-2022 |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Board or Cable |
| Shrouding | Unshrouded | Series | KK 41662 |
| Row Spacing - Mating | - | Pitch - Mating | 0.156" (3.96mm) |
| Packaging | Bulk | Overall Contact Length | - |
| Other Names | 0026-48-2022 0026-48-2022-P 0026482022-P 26-48-2022 26-48-2022-P 26482022 26482022-P WM50020-02 WM5102 WM5102-ND |
Operating Temperature | - |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 2 | Mounting Type | Through Hole, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Polyester, Glass Filled | Insulation Height | 0.128" (3.25mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | - | Fastening Type | Push-Pull |
| Detailed Description | Connector Header Through Hole, Right Angle 2 position 0.156" (3.96mm) | Current Rating | - |
| Contact Type | Male Pin | Contact Shape | Square |
| Contact Material | Brass | Contact Length - Post | 0.184" (4.67mm) |
| Contact Length - Mating | 0.573" (14.55mm) | Contact Finish Thickness - Post | 100.0µin (2.54µm) |
| Contact Finish Thickness - Mating | 20.0µin (0.51µm) | Contact Finish - Post | Tin |
| Contact Finish - Mating | Gold | Connector Type | Header, Breakaway |
| Applications | Automotive, General Purpose, Industrial, Medical, Telecommunications |
