0026481033

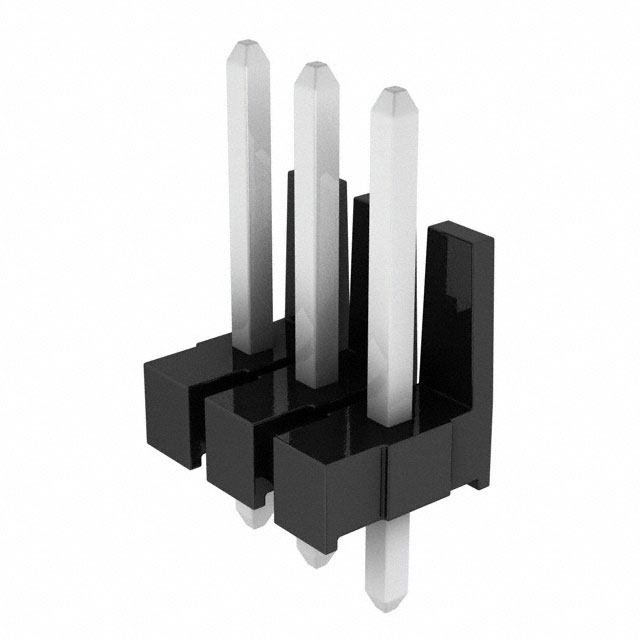

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 0026481033 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 0026481033 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 0026481033 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | CONN BKWY HEADER 3POS STR TIN |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $0.157 | $0.149 | $0.128 | $0.109 | ||
| 100 pcs | 250 pcs | 500 pcs | |||
| $0.104 | $0.094 | $0.089 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 0026481033 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | CONN BKWY HEADER 3POS STR TIN | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 223541 pcs | Data sheet | 0026481033 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Board or Cable |
| Shrouding | Shrouded - 1 Wall | Series | KK 41681 |
| Row Spacing - Mating | - | Pitch - Mating | 0.156" (3.96mm) |
| Packaging | Bulk | Overall Contact Length | 0.750" (19.05mm) |
| Other Names | 0026-48-1033 002648-1033 0026481033-ND 26-48-1033 26481033 WM50003-03 WM50003-1033 WM50003-1033-ND |
Operating Temperature | - |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 3 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Polyester, Glass Filled | Insulation Height | 0.360" (9.14mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | - | Fastening Type | Push-Pull |
| Detailed Description | Connector Header Through Hole 3 position 0.156" (3.96mm) | Current Rating | - |
| Contact Type | Male Pin | Contact Shape | Square |
| Contact Material | Brass | Contact Length - Post | 0.172" (4.37mm) |
| Contact Length - Mating | 0.450" (11.43mm) | Contact Finish Thickness - Post | 60.0µin (1.52µm) |
| Contact Finish Thickness - Mating | 60.0µin (1.52µm) | Contact Finish - Post | Tin |
| Contact Finish - Mating | Tin | Connector Type | Header, Breakaway |
| Applications | Automotive, General Purpose, Industrial, Medical, Telecommunications |
